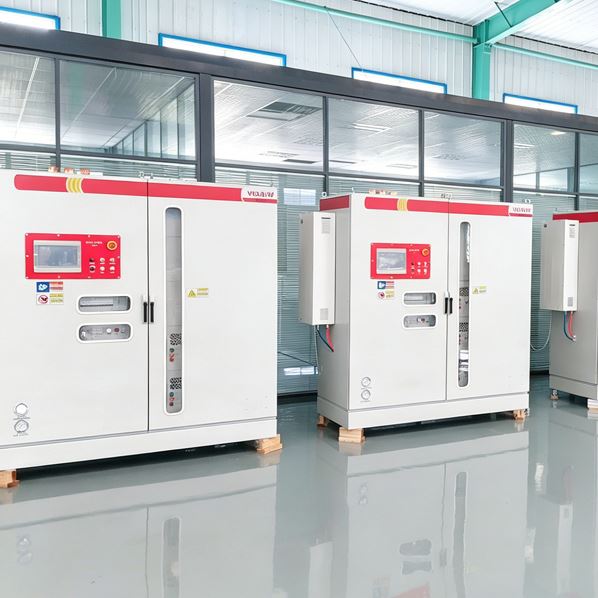

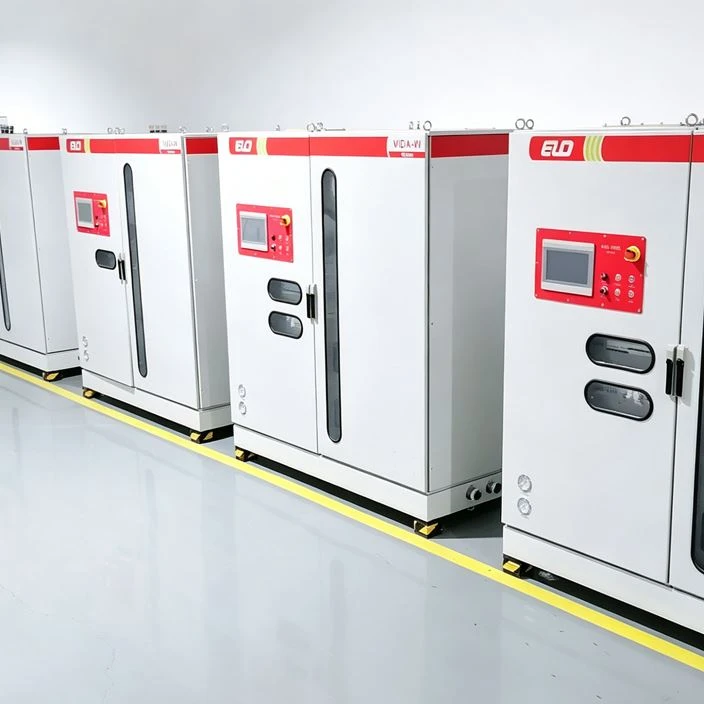

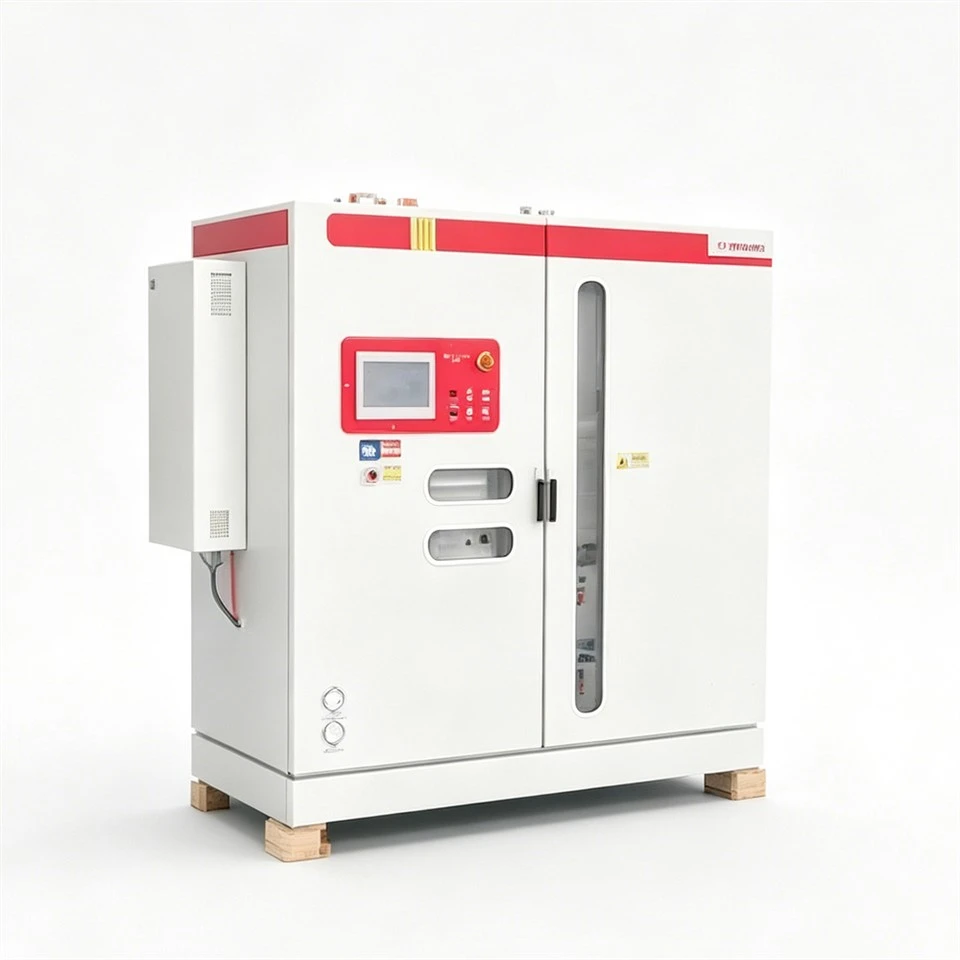

Product Overview
The full digital IGBT Intelligent Power Supply Cabinet is a special power supply equipment developed for metal heat treatment and online heating scenarios. Adopting a full digital control core and IGBT variable frequency induction technology, the equipment realizes automatic, accurate and stable control of the heating process. It is compatible with various metal profile processing production lines, meeting the demands of large-scale, continuous and high-precision industrial heating and heat treatment production. It features high compatibility, low energy consumption, no manual commissioning and high stability.
Core Technical Parameters
The equipment covers a wide range of industrial production parameters and can adapt to the power and frequency requirements of different production line specifications. The core technical parameters are as follows:
| Power Output Range |
100kW-5000kW, supporting stable operation in the full range |
| Operating Frequency Range |
0.2kHz-100kHz, compatible with various metal heating processes |
| Power Factor |
Greater than 0.95 continuously under working conditions with load output ≥50% |
| Power Adjustment Range | 1%-100% stepless continuous adjustment |
| Start Response Time | 0.2-second fast start |
| Operation Repeat Accuracy |
0.1%, ensuring consistent process parameters |
| Start Success Rate |
100%, suitable for continuous production scenarios |
| Adaptable Input Voltage |
380V, 575V, 660V, compatible with various industrial power supply systems |

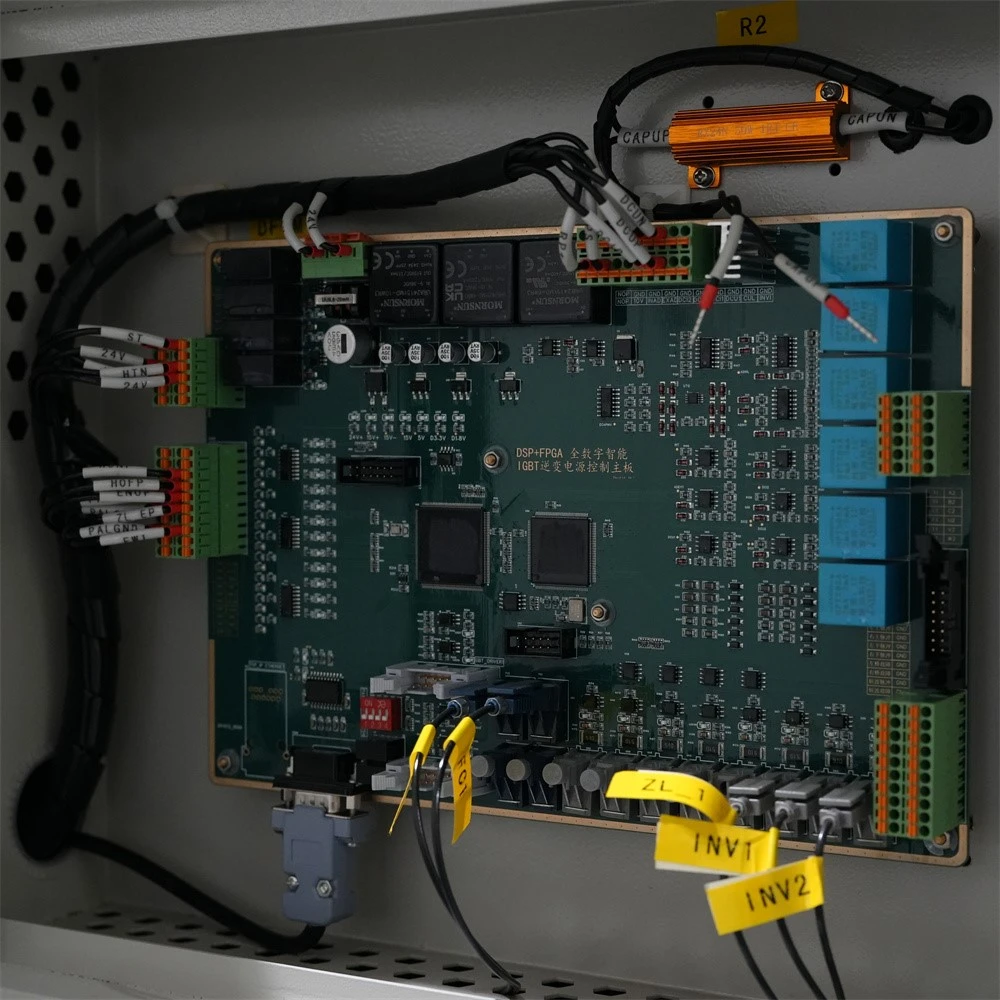

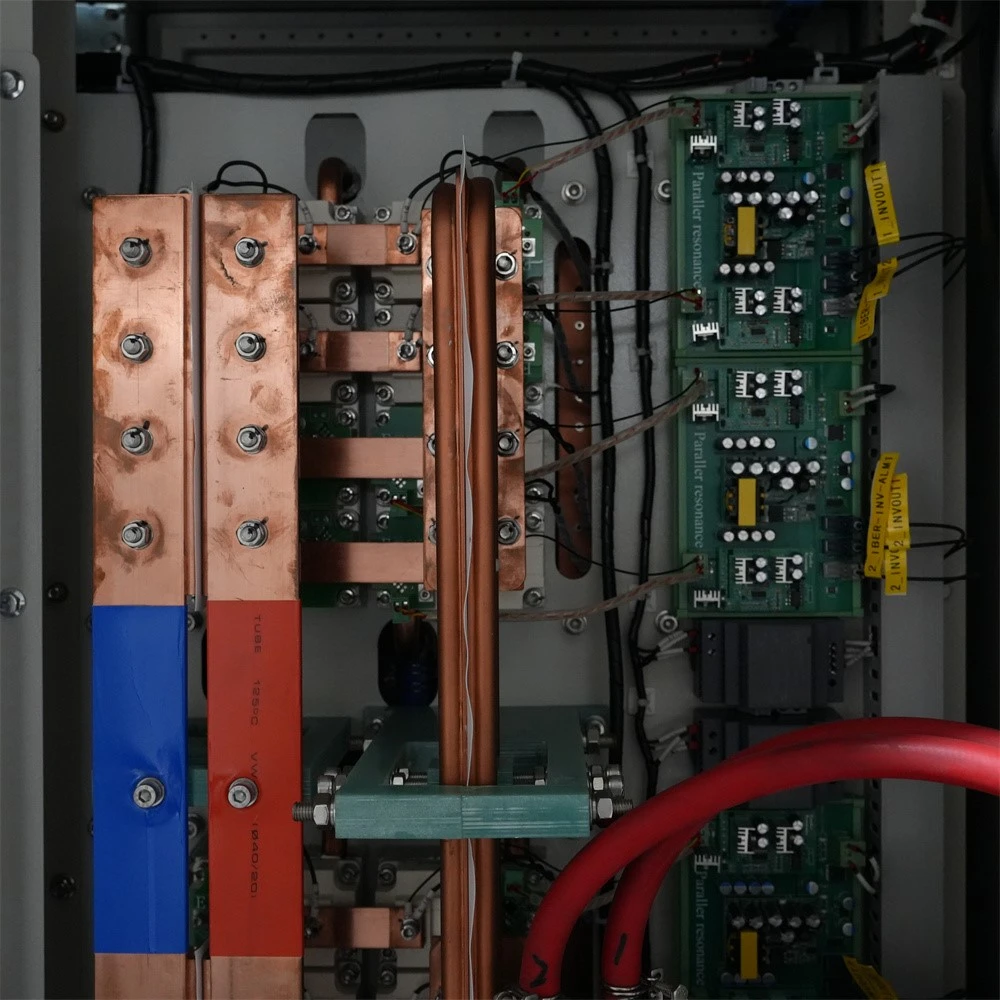

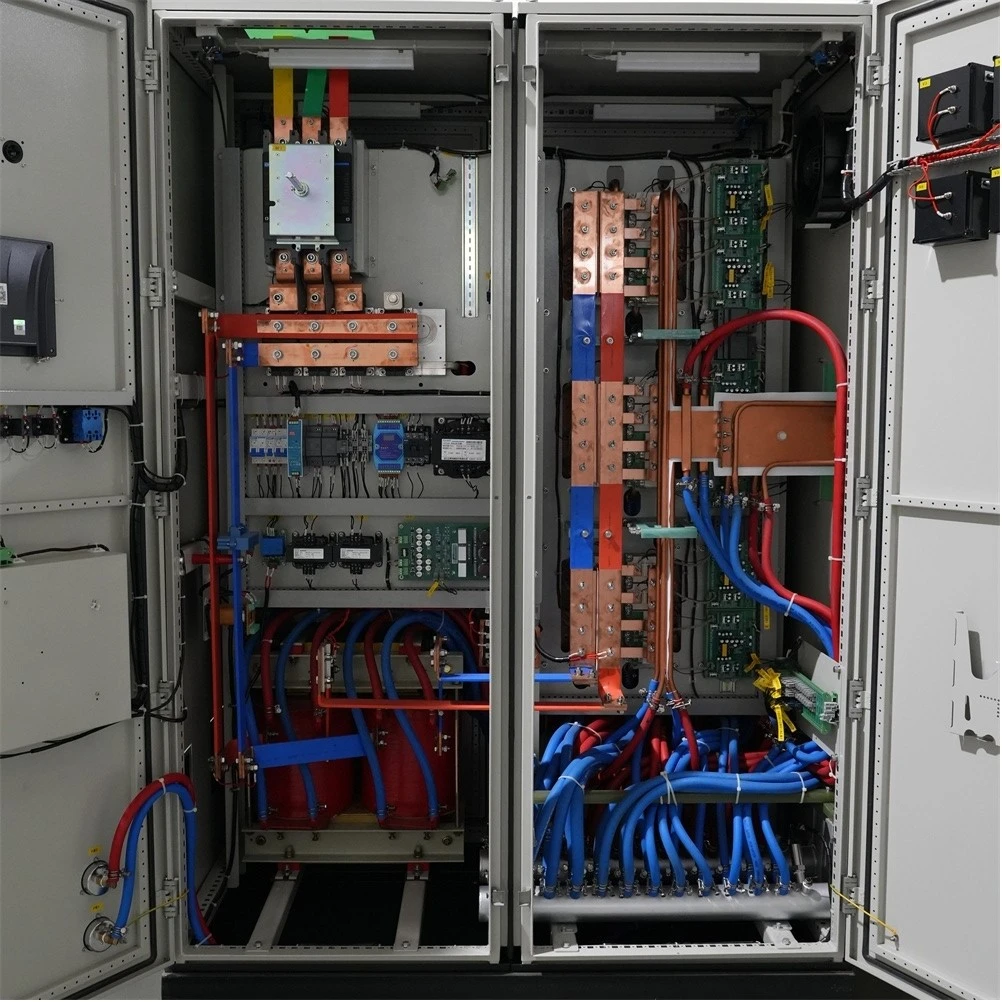

Product details
Dual Adaptive Intelligent Operation System
Frequency Conversion Adaptive Function
The equipment is built with an intelligent frequency tracking system with an adaptive frequency range of 0.35kHz. No manual intervention or cabinet opening parameter commissioning is required during production process adjustment, workpiece specification replacement and load state changes. The power supply can independently identify the load resonance state, automatically complete frequency tracking and frequency modulation calibration, and match the optimal resonance frequency of the load in real time to maintain the optimal operating condition, reduce manual commissioning costs and avoid errors caused by manual parameter adjustment.
Variable Load Adaptive Function
The equipment has a full-process load adaptive matching capability. When facing working condition changes such as production process adjustment, load weight change and workpiece temperature change, it can independently complete the dynamic matching of power supply parameters and load states. The system corrects operating parameters in real time to keep the power supply and load in the best matching state, stabilize the equipment output efficiency, ensure the consistency of batch production quality, reduce equipment failure probability and extend the stable operation cycle of the equipment.

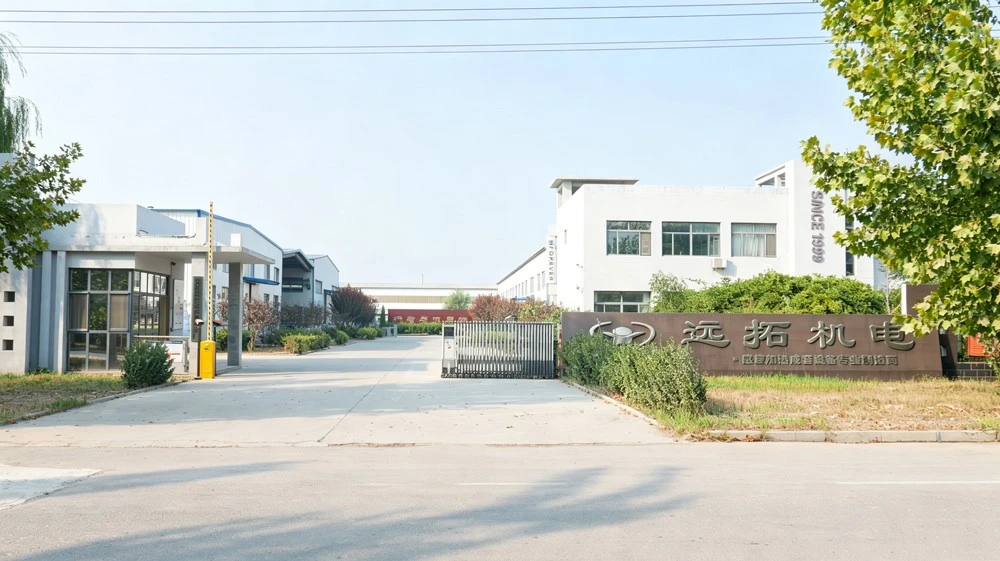

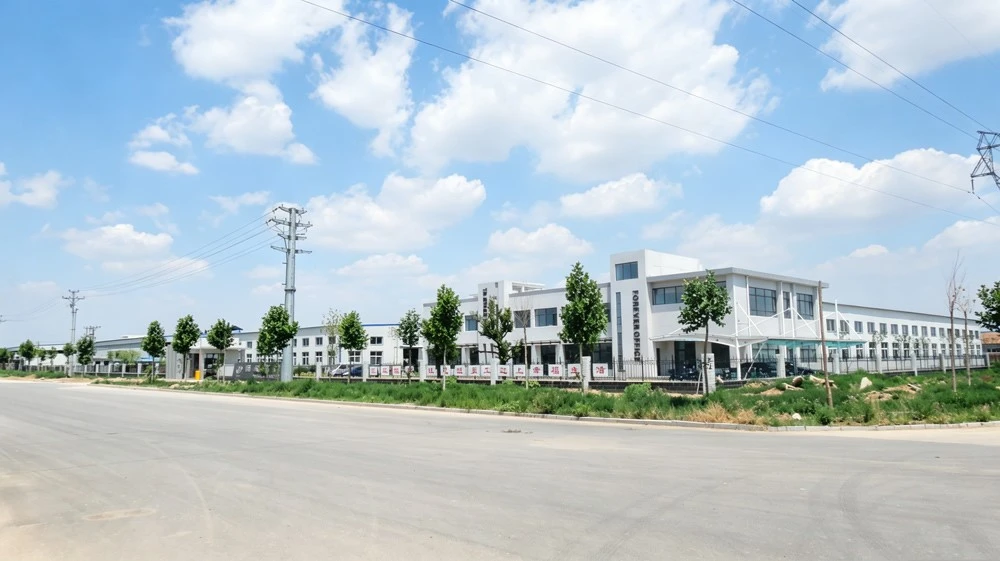

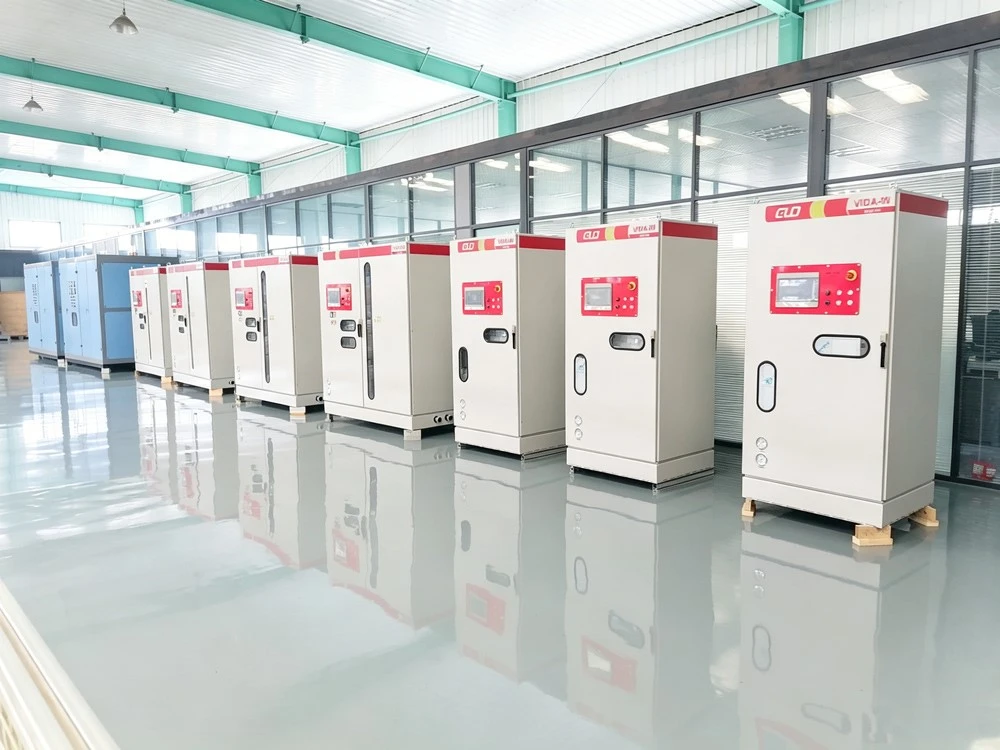

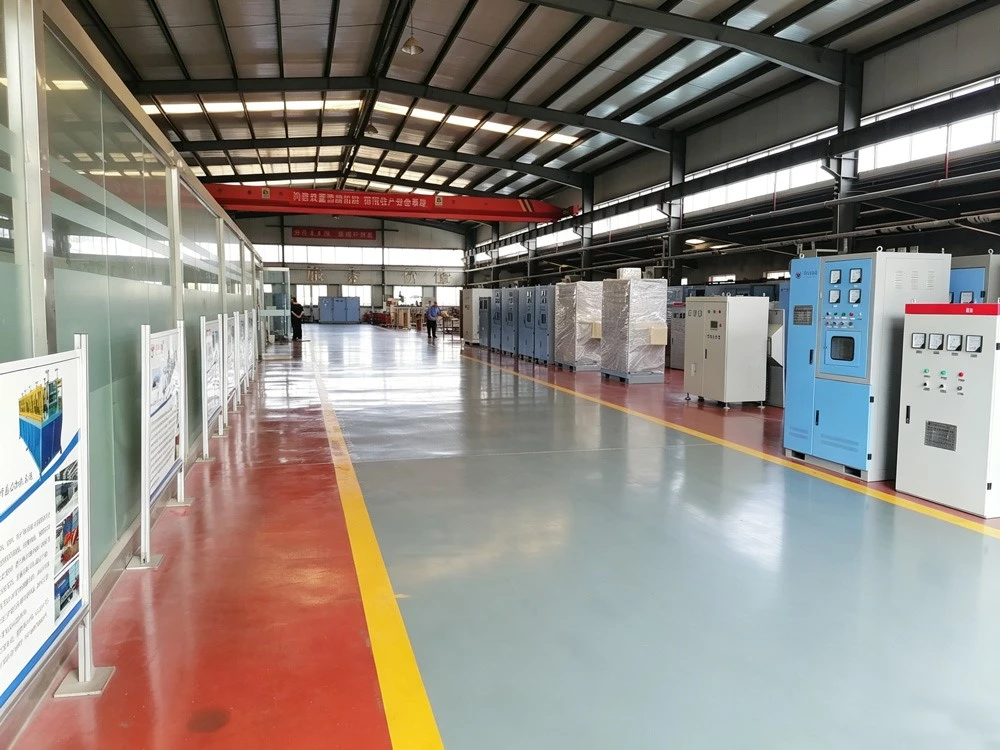

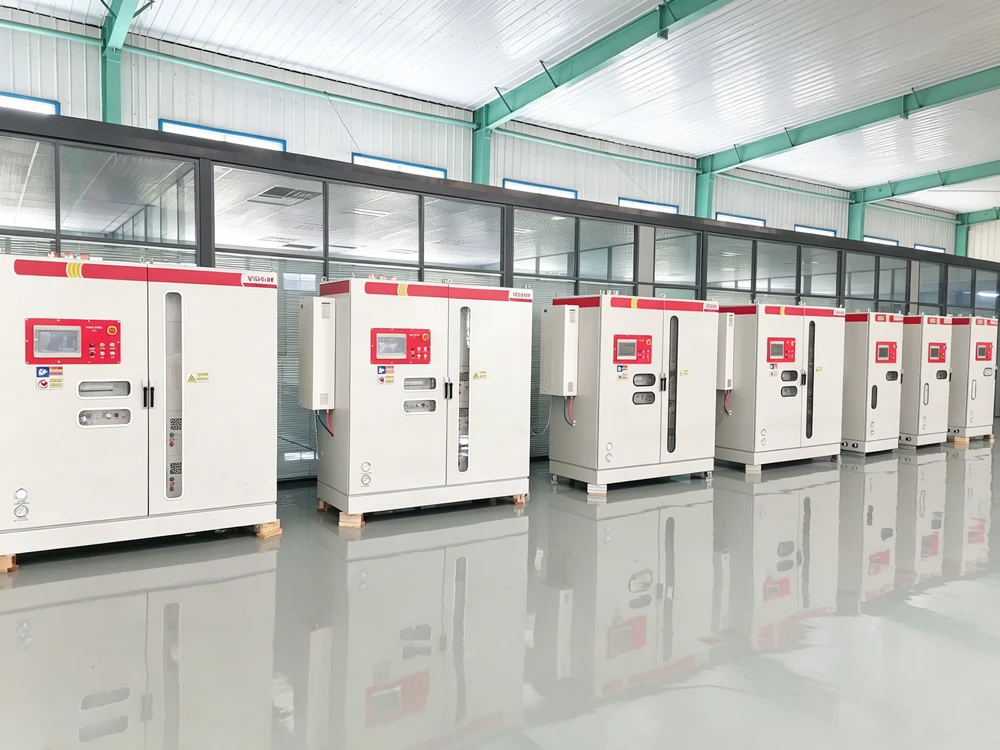

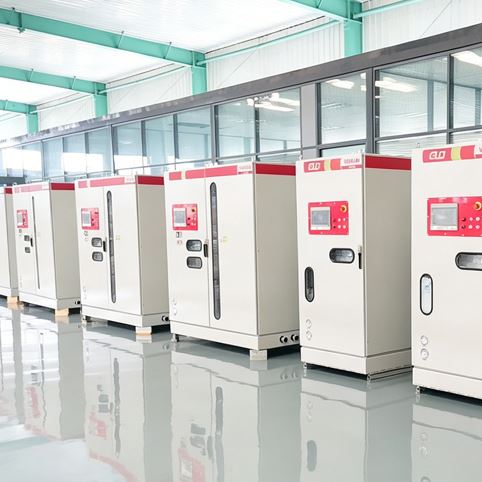

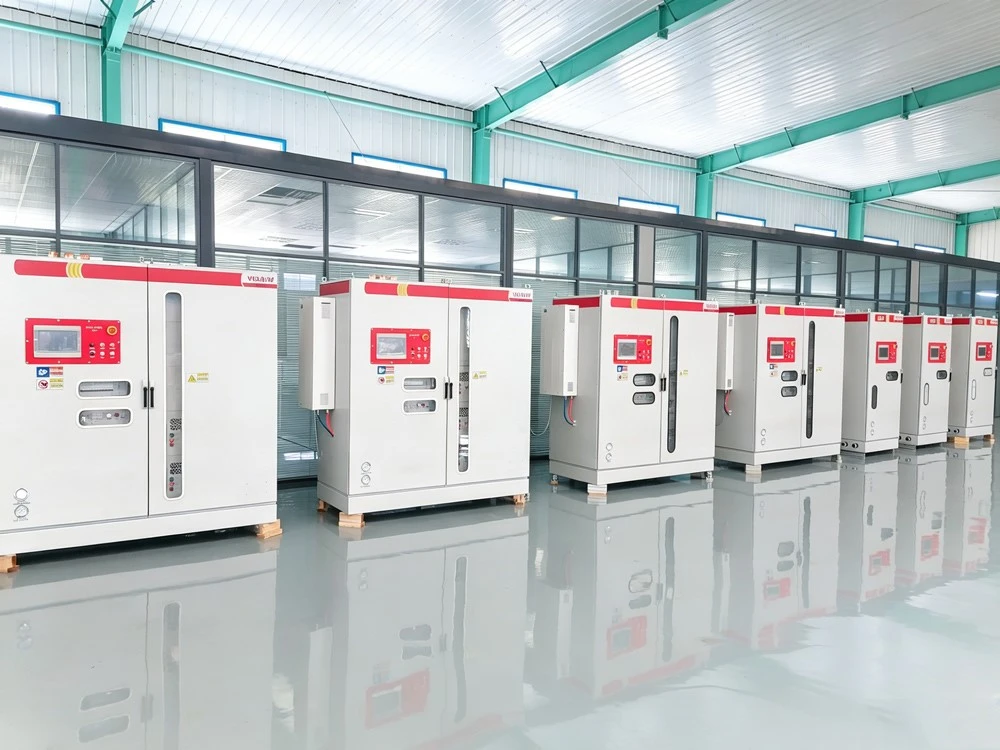

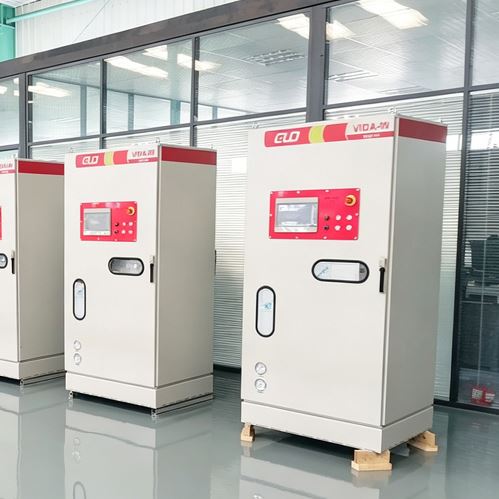

Company real scene
Precise Power and Temperature Control System
The IGBT Intelligent Power Supply Cabinet adopts a linked power and temperature regulation technology with a full digital automatic regulation system. The power supports 1%-100% stepless smooth adjustment without gear switching stagnation or output fluctuation. The system collects heating temperature data in real time, dynamically matches the output power, and automatically adjusts the power output according to the process temperature requirements, so as to realize accurate locking and stable control of heating temperature. This control mode effectively avoids over-temperature, uneven temperature and heating lag, meeting the requirements of high-precision quenching and tempering heat treatment processes.
High Power Factor Energy-Saving Performance
The equipment is adaptable to all working loads. The power factor remains higher than 0.95 under conventional working conditions with power output ≥50%. No independent power compensation device is required, which directly reduces users' equipment procurement and installation costs. The high power factor operation mode effectively improves the overall power supply capacity of the factory power supply system, suppresses high-order harmonics generated during equipment operation, optimizes power quality, reduces reactive power loss and enterprise electricity costs, and realizes long-term energy-saving operation.
High-Reliability Start and Operation Performance
The start performance of the equipment is not affected by load states and workpiece temperature states. It can realize 0.2-second ultra-fast start under all working conditions including no-load, full load, cold workpiece and hot workpiece. Adopting standardized program control, the equipment achieves a 100% start success rate and 0.1% operating parameter repeat accuracy. It can maintain a stable output state for a long time, adapt to 24-hour uninterrupted industrial production line operation, and avoid production delays caused by start failures and parameter drift.
Multi-Mode Closed-Loop Control Function
The equipment supports three switchable closed-loop control modes: constant power control, constant temperature control and constant current control (optional functions). The multi-mode closed-loop control can adapt to working conditions of different metal materials, heating processes and production rhythms, accurately meet the process requirements of workpiece preheating, heating, quenching and tempering, and heat preservation, and improve the universality and adaptability of the production line.

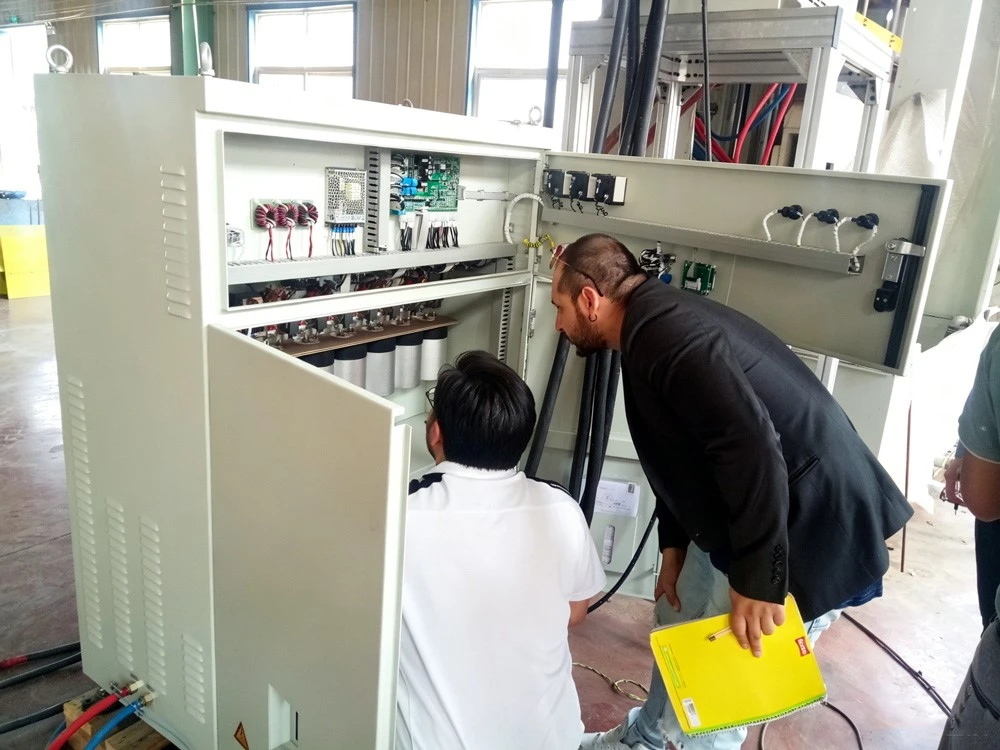

Customer visit
Core Application Fields
Specially designed for the heating and heat treatment processes of ferrous metal profiles, the equipment is applicable to steel bars, steel billets, steel plates, steel strips, steel pipes and other steel workpieces. It is widely used in online continuous heating production lines and steel quenching and tempering heat treatment production lines, covering the whole process of steel pretreatment, forming heating, quenching and tempering modification, and finishing preheating, suitable for large, medium and small-scale industrial production lines.
FAQ
Q1: What is the power and frequency range of this power supply?
A: Power:100kW-5000kW, frequency:0.2kHz-100kHz, suitable for most steel heating & heat treatment lines.
Q2: Is cabinet opening & manual tuning required when load changes?
A: No. Built-in dual adaptive system for frequency and variable load. The unit tracks optimal resonant frequency automatically without manual adjustment or cabinet opening.
Q3: How about power factor? Is extra power compensation needed?
A: PF＞0.95 above 50% rated output. No separate reactive power compensation cabinet required, cutting investment and electricity cost.
Q4: Can customers visit your factory for inspection?
A: Factory visit is available by appointment for workshop and equipment test inspection.
Q5: Does your factory have in-house R&D team?
A: Internal electric control team optimizes power supply program for new processing requirements.
