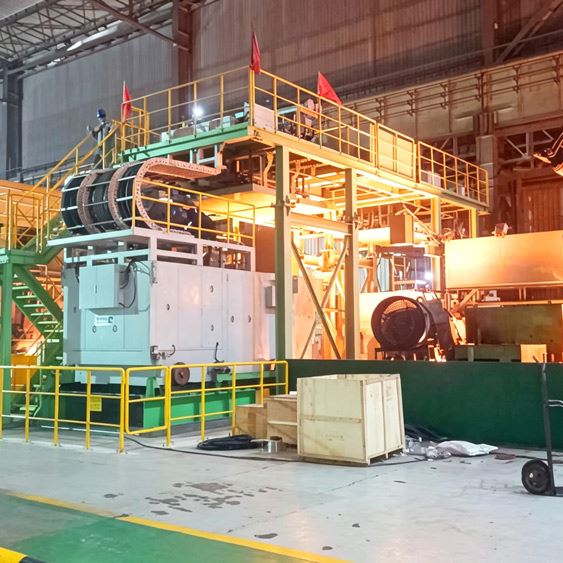

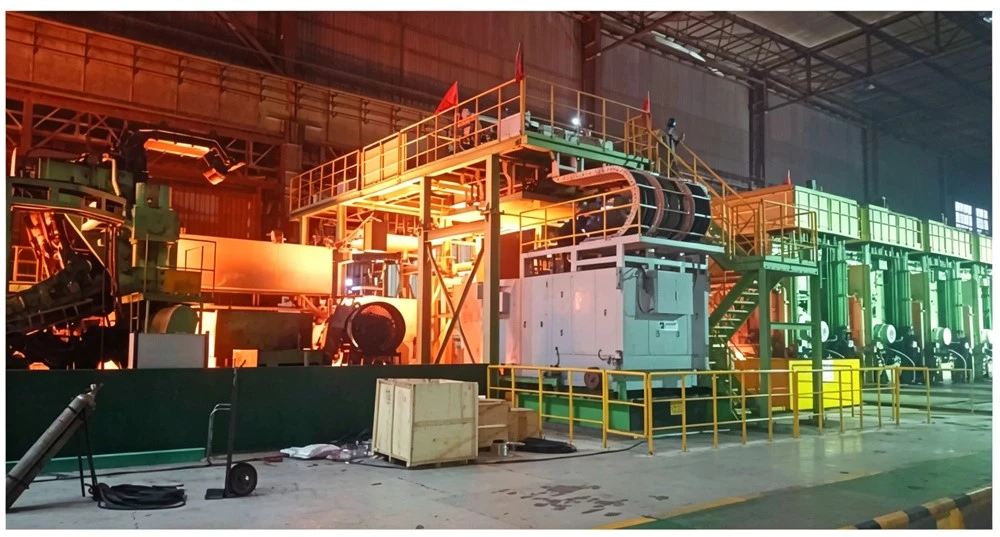

Product Introduction
Power Supply System Configuration
Steel Plate Edge Reheating Induction Heating Production Line adopts a dual rectifier 12-pulse power supply scheme, with a rated power of 5000KW and an operating frequency of 1000HZ. The power output remains stable to match the continuous high-speed edge reheating working conditions for medium and thick plates.
Applicable Workpieces
This equipment performs edge reheating treatment on medium and thick plate blanks, solving the problems of severe edge temperature drop and uneven temperature difference during medium-thick plate rolling.
Inductor Structural Form
The inductor is designed with a common rail structure. It features strong overall rigidity and stable positioning accuracy, suitable for continuous heating under high-speed conveying conditions.

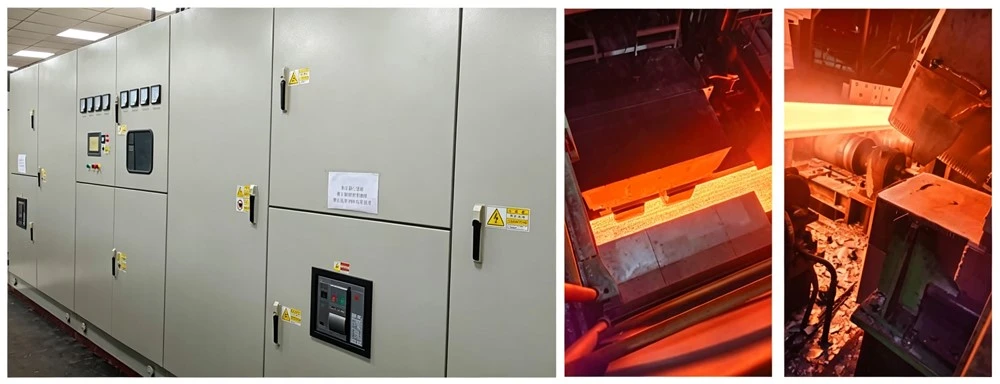

Complete Machine Control System
The core hardware is equipped with a supporting Siemens industrial control system, delivering stable program operation and strong anti-interference performance.
A multi-point temperature measuring module is installed to collect plate temperature data at multiple points and adjust power output in real time according to feedback.
Conveying Operation Parameters
The standard conveying speed of the production line reaches 60 meters per minute. It matches the feeding rhythm of high-speed rolling lines to realize uninterrupted continuous feeding and heating.
Temperature Adjustment Range
The controllable heating temperature ranges from 50℃ to 100℃. It accurately compensates heat for steel plate edges, reduces the overall temperature difference of plates, and guarantees rolling forming quality.
Core Equipment Advantages
1.Stable power supply performance: The dual rectifier 12-pulse power supply causes low harmonic interference to the power grid. Its high-power output stays steady without fluctuation during long-time high-speed operation, adapting to mass continuous reheating production of medium and thick plates.
2.Durable and reliable inductor: The integrated common rail structure offers firm positioning, minimal deformation and wear under high-speed conveying, plus good sealing protection, which greatly cuts downtime for maintenance.
3.Intelligent precise temperature control: The Siemens industrial control system works with multi-point temperature measuring devices to automatically adjust power based on collected temperature data. It achieves high temperature control accuracy within 50℃–100℃, ensures uniform edge reheating of steel plates, and reduces rolling warping and dimensional deviation defects.
4.High production efficiency: The 60m/min high conveying speed perfectly connects high-speed medium-thick plate rolling lines, enabling non-stop continuous feeding and reheating to boost the total output of the whole rolling line.
5.High working condition adaptability: The equipment is specially developed for edge heat compensation of medium and thick plates. It balances the overall temperature field of plates and improves the flatness and consistent mechanical properties of rolled finished products.

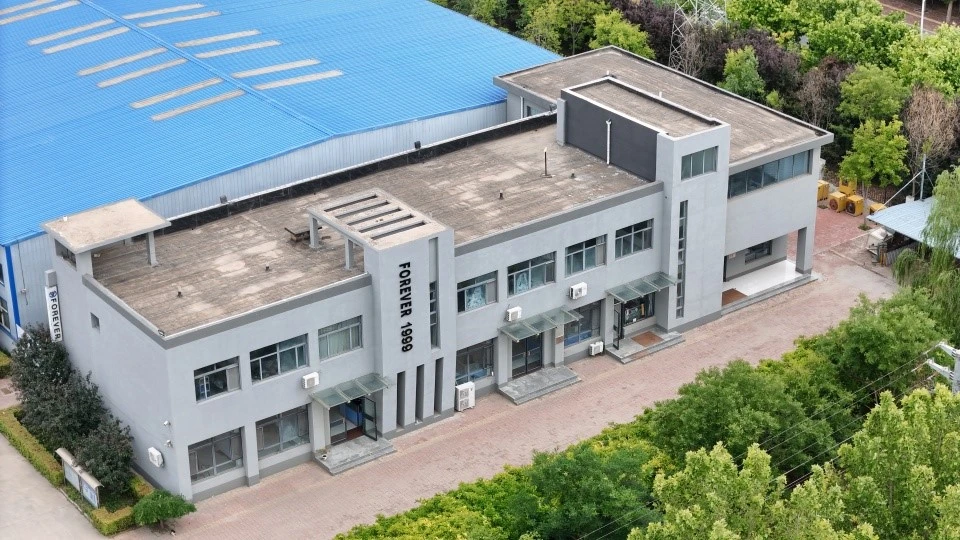

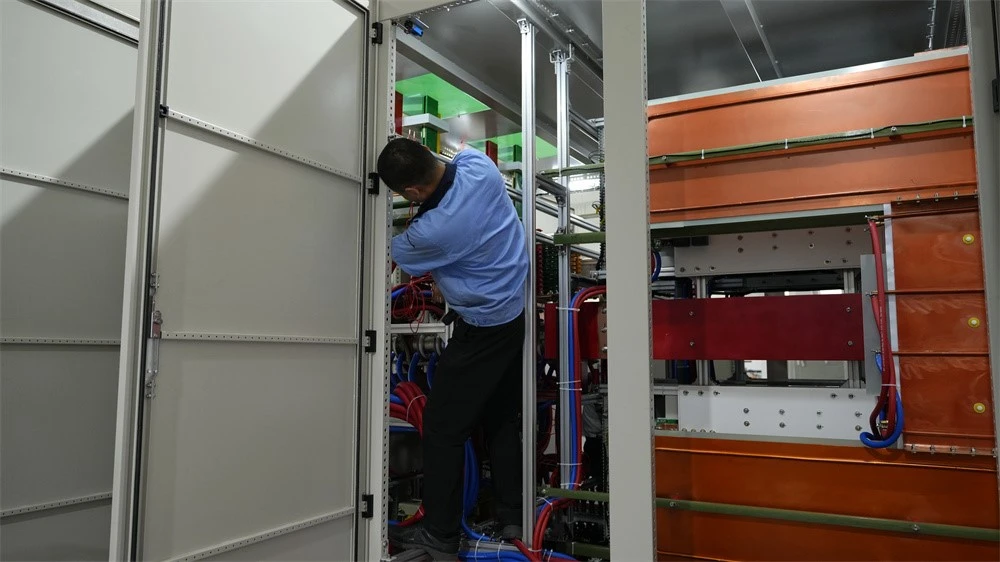

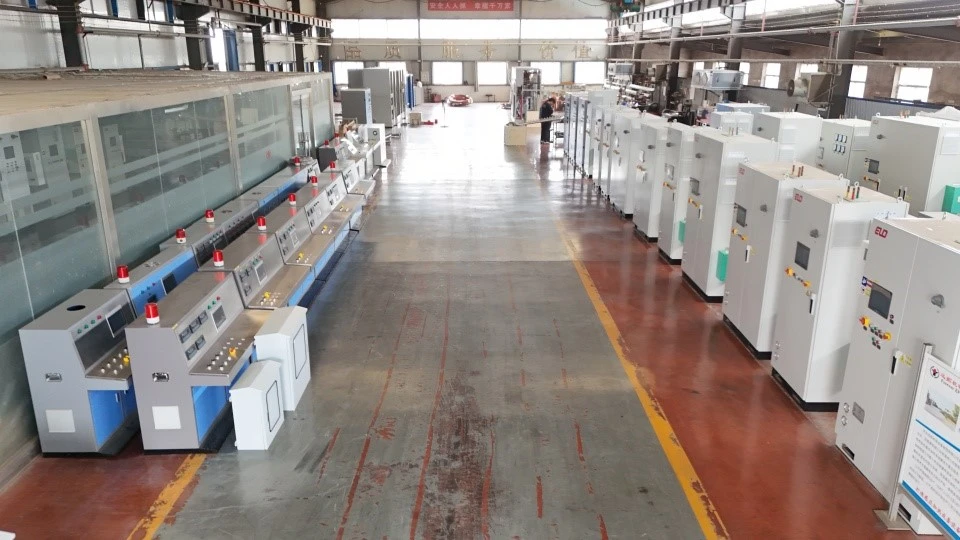

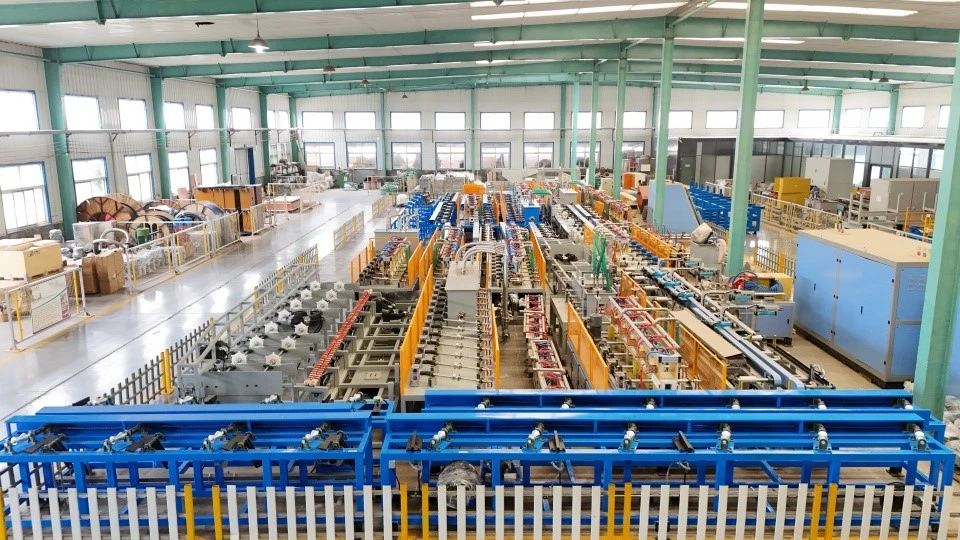

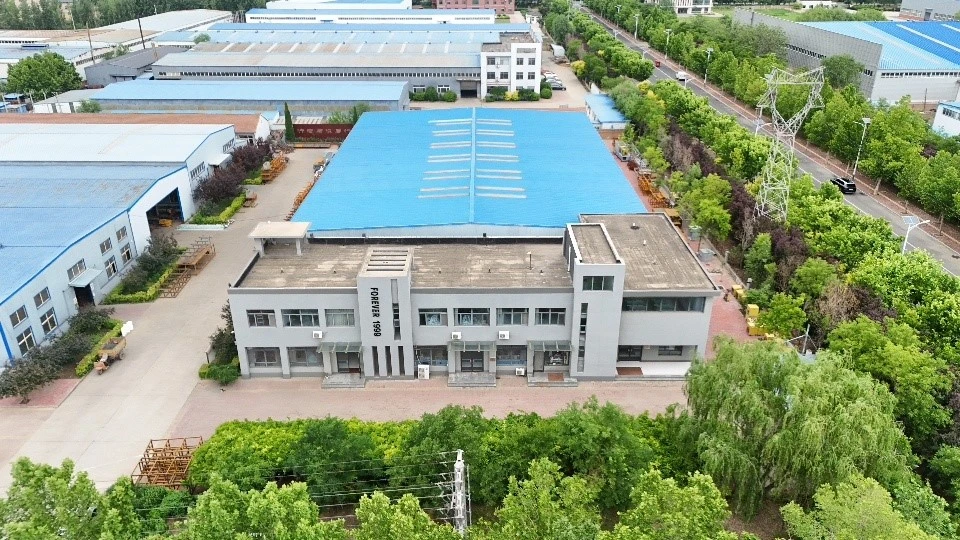

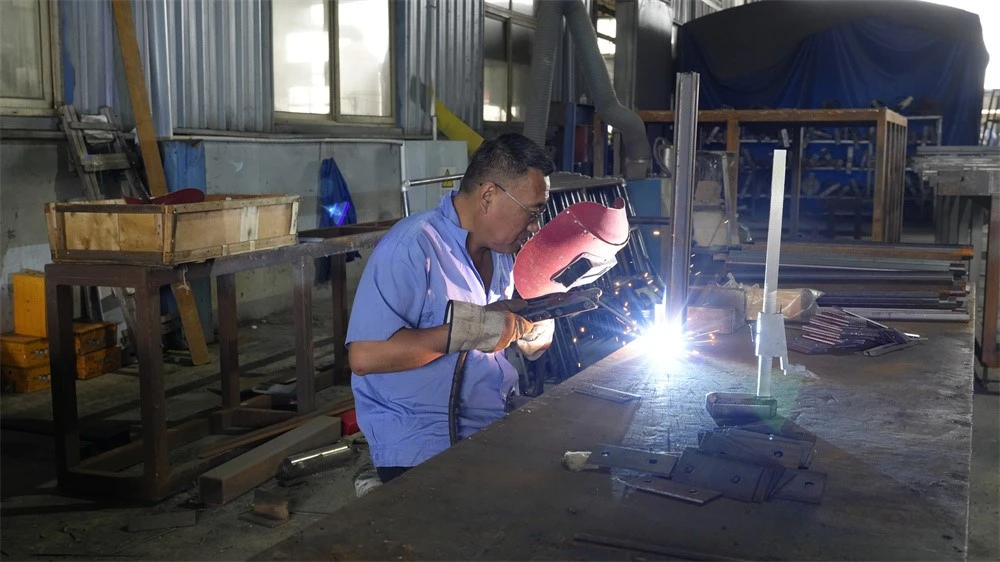

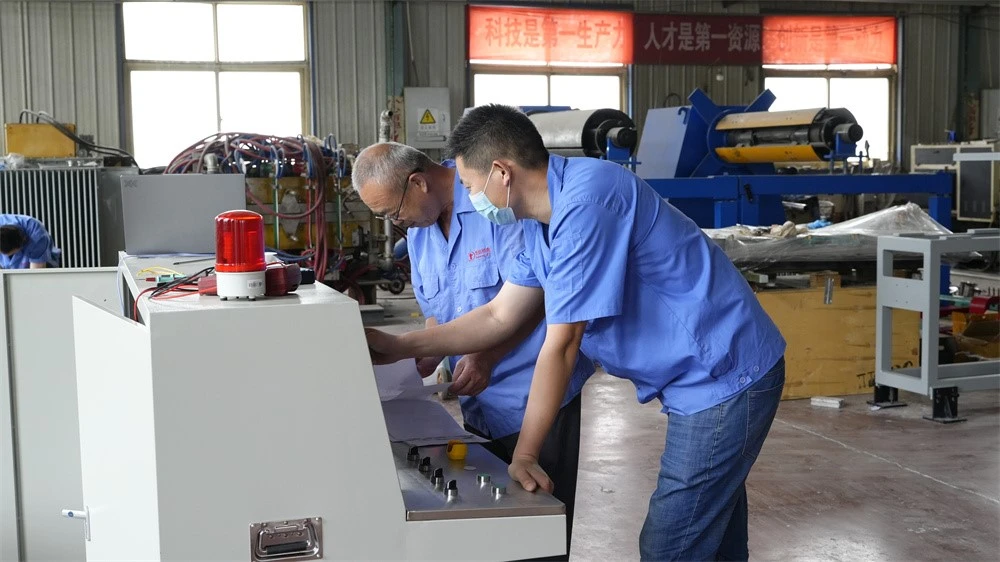

Factory environment
Manufacturer Supporting Services
1.All complete machines are independently manufactured in our factory. We adjust equipment power, inductor dimensions and conveying parameters according to customers' plate blank width, thickness and rolling speed, and customize Steel Plate Edge Reheating Induction Heating Production Line as required.
2.We deliver complete supporting documents including installation drawings, electrical wiring files, and equipment operation & commissioning manuals.
3.We provide on-site installation and commissioning, practical training for operators, year-round supply of original spare parts, and remote technical guidance for fault troubleshooting.
Why Choose Us
Factory Direct Production
We are original manufacturer. Steel Plate Edge Reheating Induction Heating Production Line is fully self-produced without middleman cost, customizable to your plate size and rolling speed.
01
Reliable Standard Configuration
Equipped with 12-pulse dual rectifier power supply, Siemens control system and durable common rail inductor. Multi-point temperature control ensures even edge reheating and stable long-term high-speed operation.
02
High Production Matching Efficiency
Max conveying speed 60m/min, heating range 50-100℃. Perfectly fits medium-thick plate rolling lines, reduces plate warping and dimensional errors, upgrades finished product quality.
03
Full After-sales Support
Offer installation drawings, on-site commissioning, operator training, year-round original spare parts and remote technical troubleshooting.
04
Full Range Heating Equipment Supply
Besides Steel Plate Edge Reheating Induction Heating Production Line, we supply thin plate heating, forging, quenching and tempering induction lines, providing integrated heating solutions.
05
