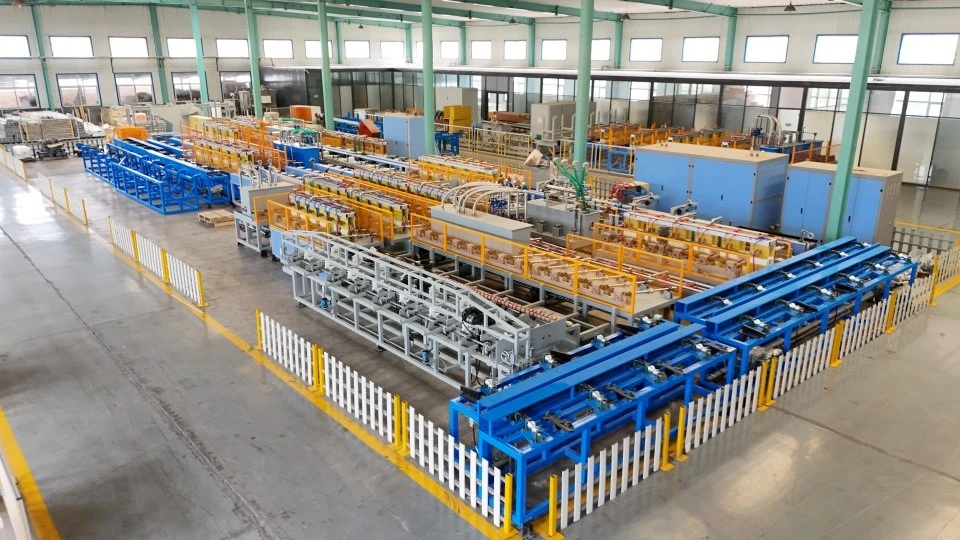

Enterprise Strength Introduction
Hebei Yuantuo Electromechanical is a professional manufacturer specializing in stainless steel pipe annealing equipment in China.
1.The factory is equipped with standardized high-standard production assembly lines.
2.A full-time team of technical R&D and process engineers is deployed.
3.We supply complete sets of induction heating stainless steel pipe annealing machines. Steel Pipe Annealing Heat Treatment Equipment features stable operation, low energy consumption and eco-friendly production, which meets the current production demands of the pipe processing market.
4.We customize and deliver complete practical thermal processing solutions for stainless steel pipe annealing upon customer requests, and inquiries via phone calls are welcome.

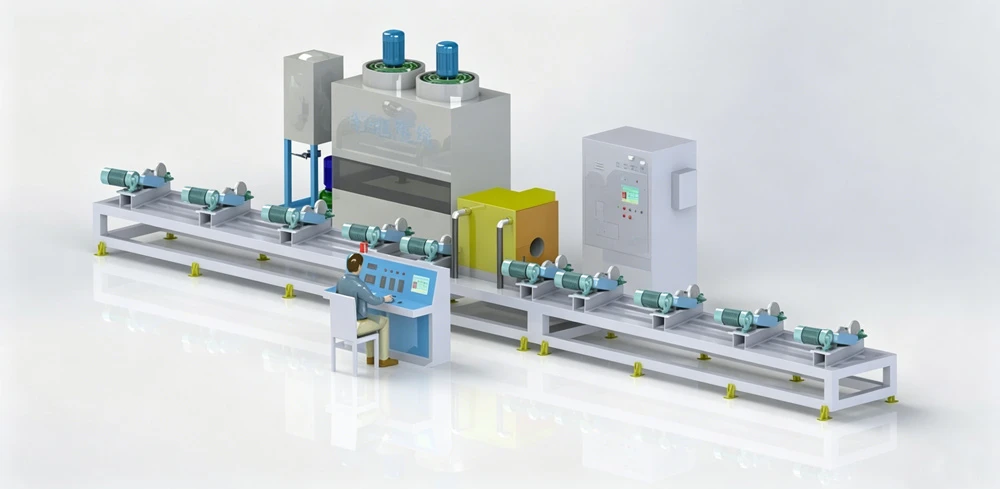

Core Basic Hardware Parameters of Equipment
The included angle between the roller table axis and workpiece axis is fixed within 18° to 21°.

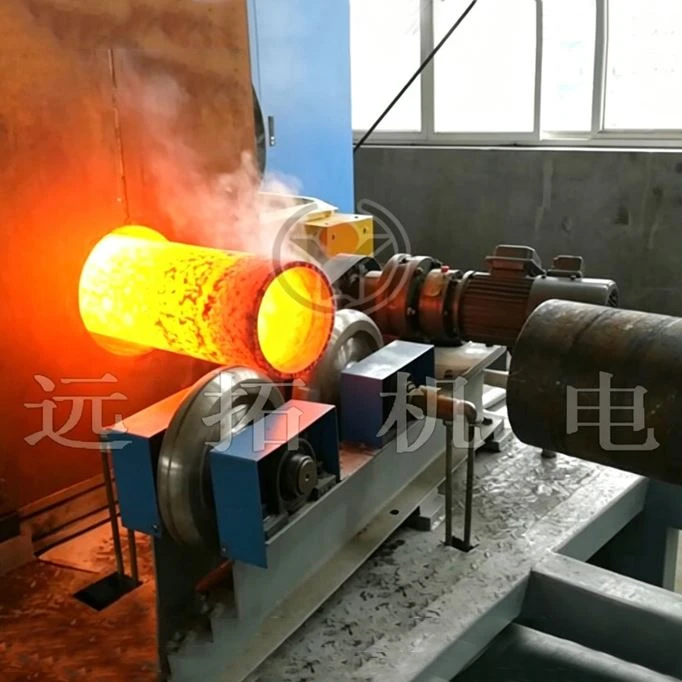

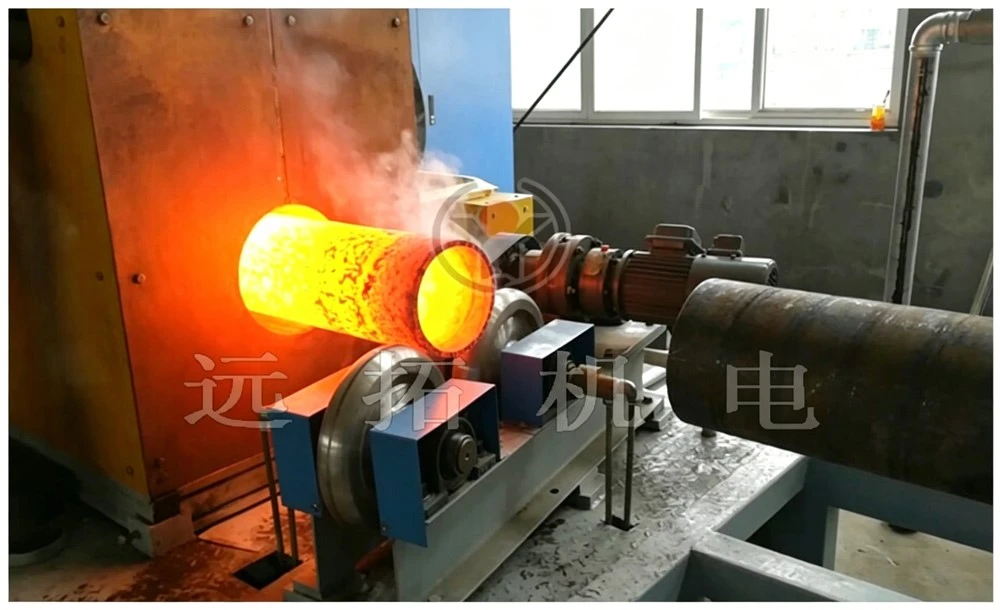

Steel pipes rotate on their own axis while moving forward at a constant speed, ensuring uniform heating across the pipe wall.
Rollers at joints between furnace sections are made of non-magnetic stainless steel with water cooling structure.
Each conveying shaft is driven by an independent motor and reducer unit.
Separate frequency converters are configured for individual shafts to set speed differences between shafts.
The whole production line supports segmented speed regulation to match conveying speeds of pipes with different specifications.
Annealing processes impose strict requirements on temperature control. Raytek infrared pyrometers from the US are adopted as temperature measuring components.German Siemens S7 PLC forms a complete closed-loop temperature control system.
Temperature diffrence of steel pipes after discharging can be stably controlled within 10℃ for high precise temperature regulation.
A dedicated built-in program stores and recalls production formulas.
After operators input three basic parameters including steel grade, outer diameter and wall thickness, the system automatically retrieves the corresponding full set of operating parameters.
Manual recording, checking and input of process values for workpieces of various specifications are eliminated to reduce human operation errors.
Advantages of PLC Remote Intelligent Control System
Data processing and fault response capability
After setting process parameters for workpieces, the system automatically displays parameters, stores data, prints production reports, and triggers automatic alarms when equipment faults occur.
01
Overall equipment control performance
Steel Pipe Annealing Heat Treatment Equipment adopts an all-digital intelligent framework with widely adjustable operating parameters and straightforward operation procedures.
02
System security management function
A complete background management program is integrated with a one-click system restore function for fault reset and program reset.
03

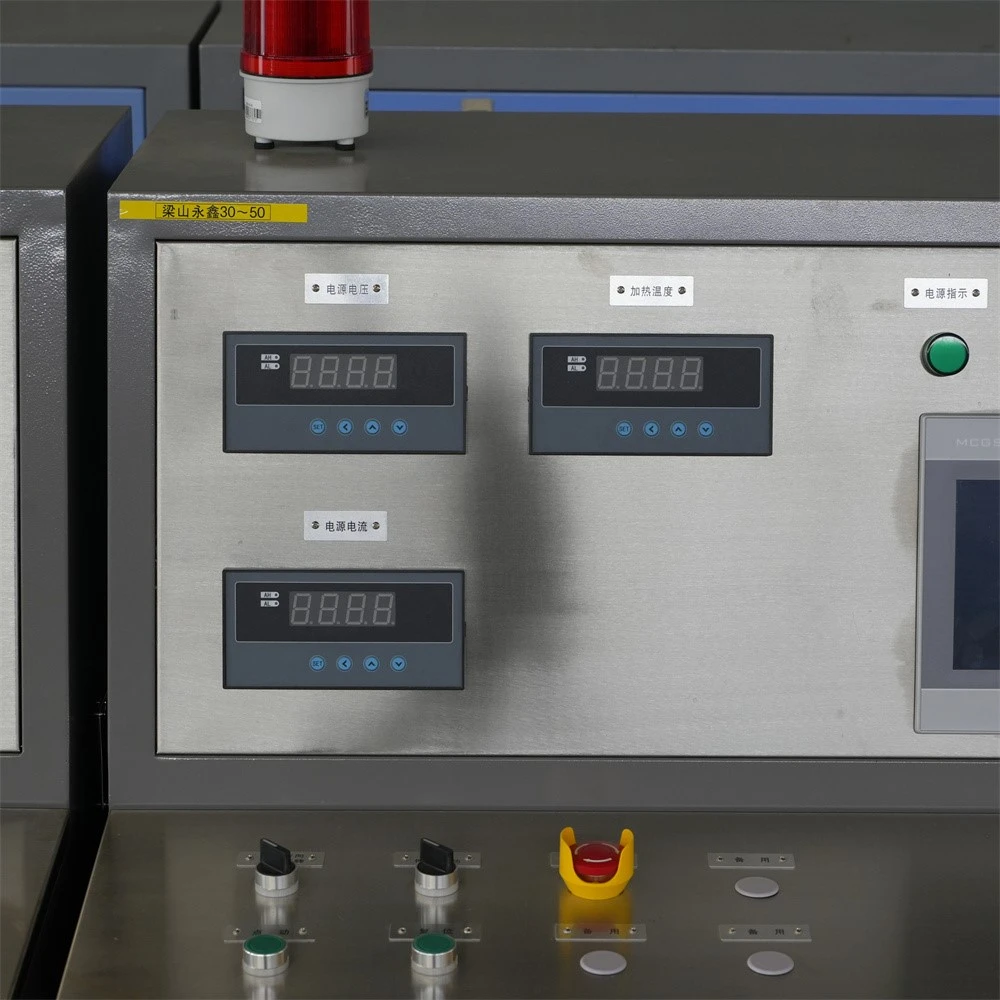

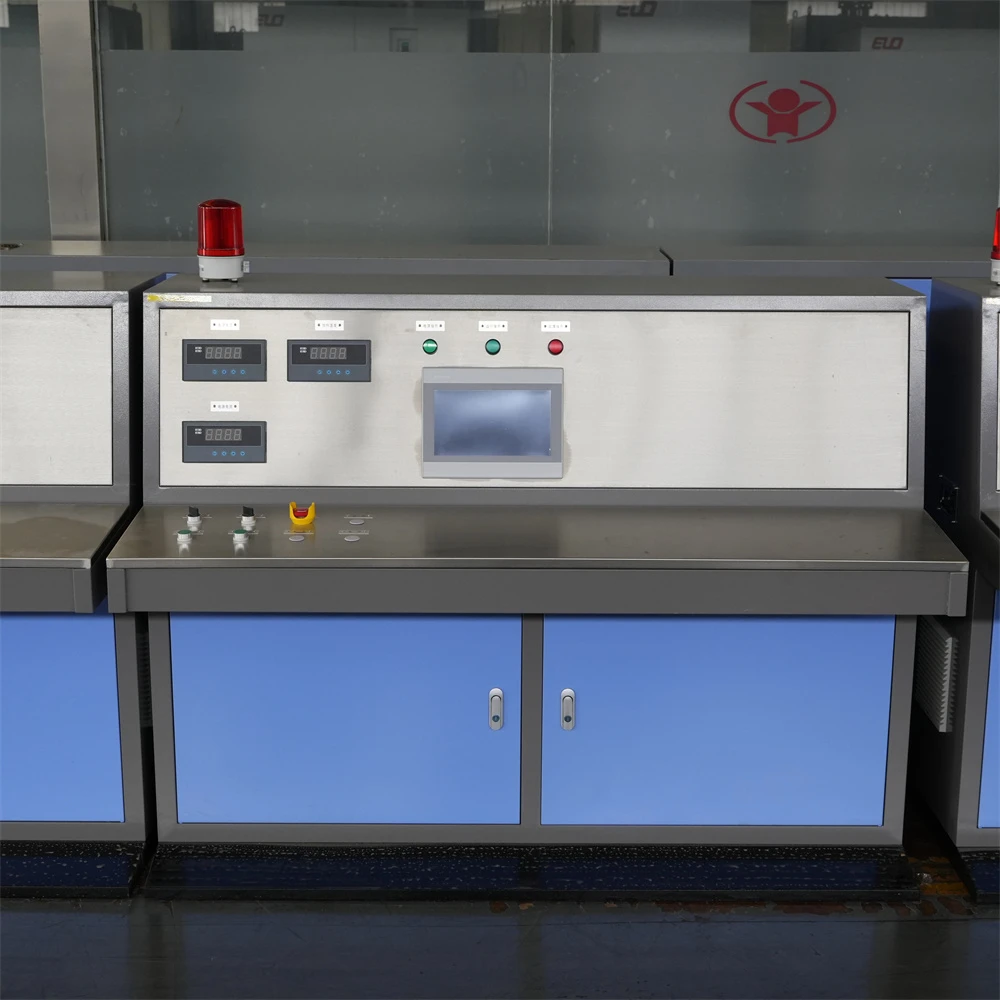

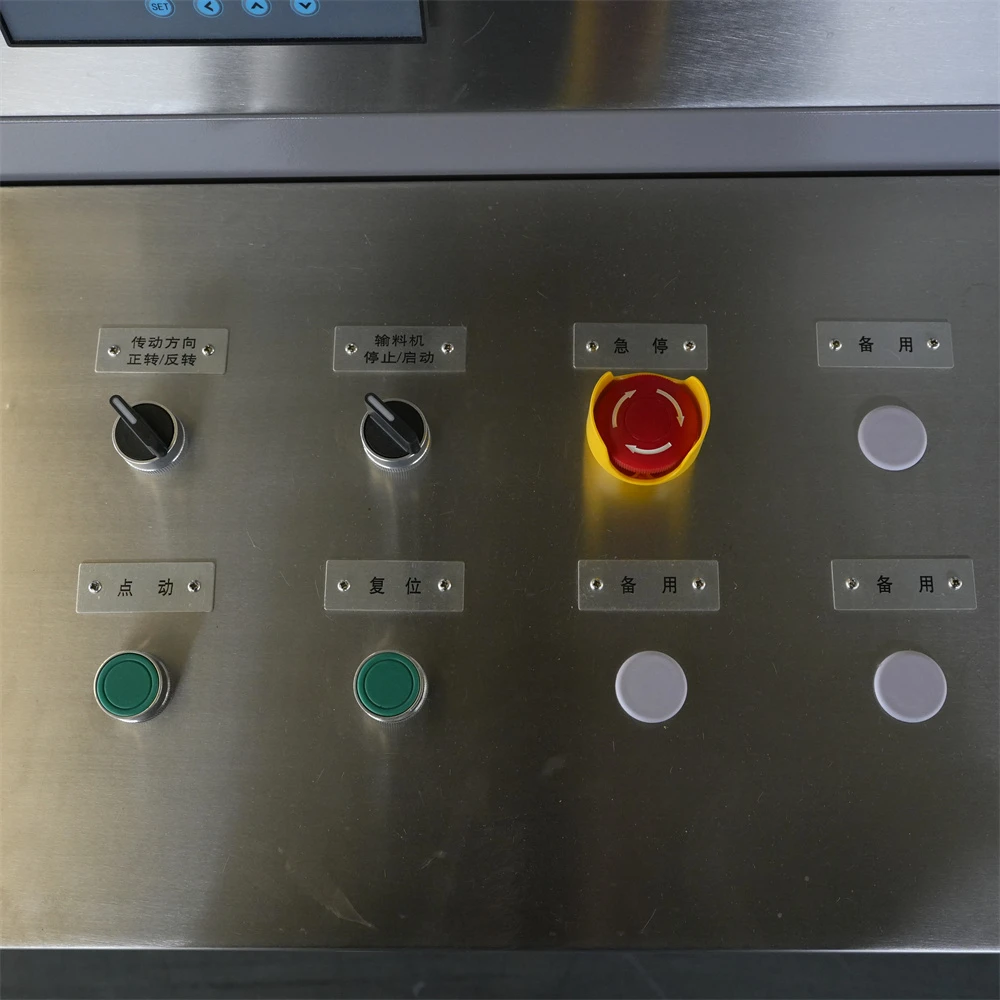

Human-machine interaction interface
The operation interface is designed with humanized logic, paired with visual touch screens for clear step-by-step operation prompts.
04
Multi-language adaptation
A built-in multi-language switching module allows operators to switch operation languages according to regions, fitting factory scenarios at home and overseas.
05
Overall Application Advantages of Equipment
1.Strong operational stability without obvious performance degradation during long-term continuous production.
2.Lower power consumption, with notably reduced energy usage compared with old resistance furnaces and conventional induction furnaces.
3.Dust-free production with low exhaust emissions, complying with environmental protection audit standards.
4.High full-process automation minimizes manual intervention, cutting labor costs and human-induced operation error rates.
5.Compatible with annealing processing of stainless steel pipes in multiple material grades, supporting a wide range of pipe specifications.
Cooperation Service Terms
1.On-site communication for working conditions is available, including field survey of workshop space and production capacity requirements.
2.Customized constructive thermal processing solutions for stainless steel pipe annealing are provided free of charge.
3.After delivery, we offer equipment installation guidance, on-site commissioning and pre-job training for operators.
4.Long-term support covers spare parts supply, after-sales maintenance and program upgrade services.

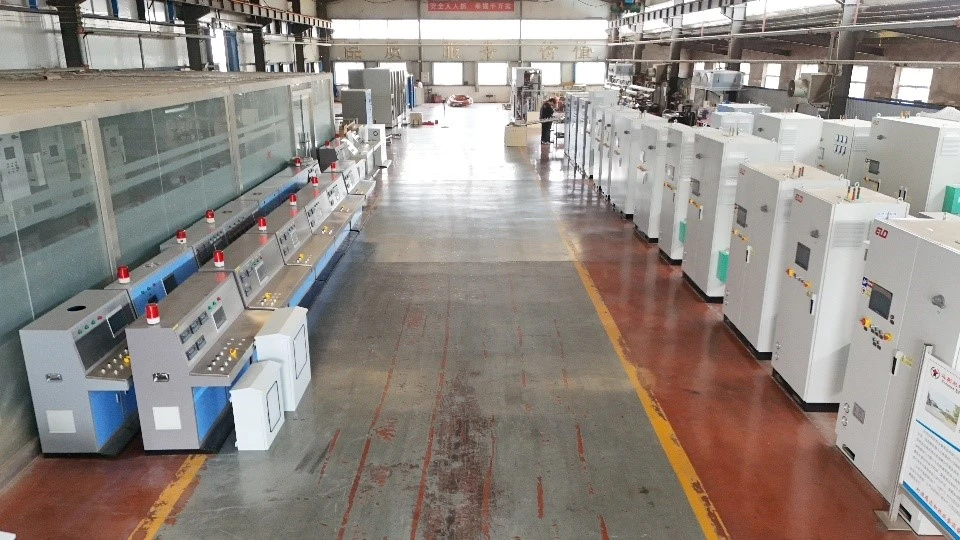

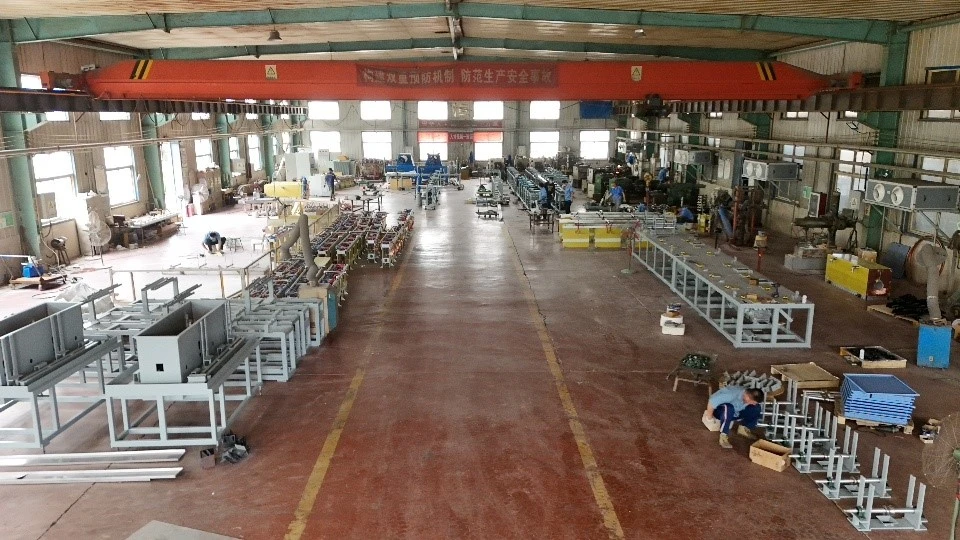

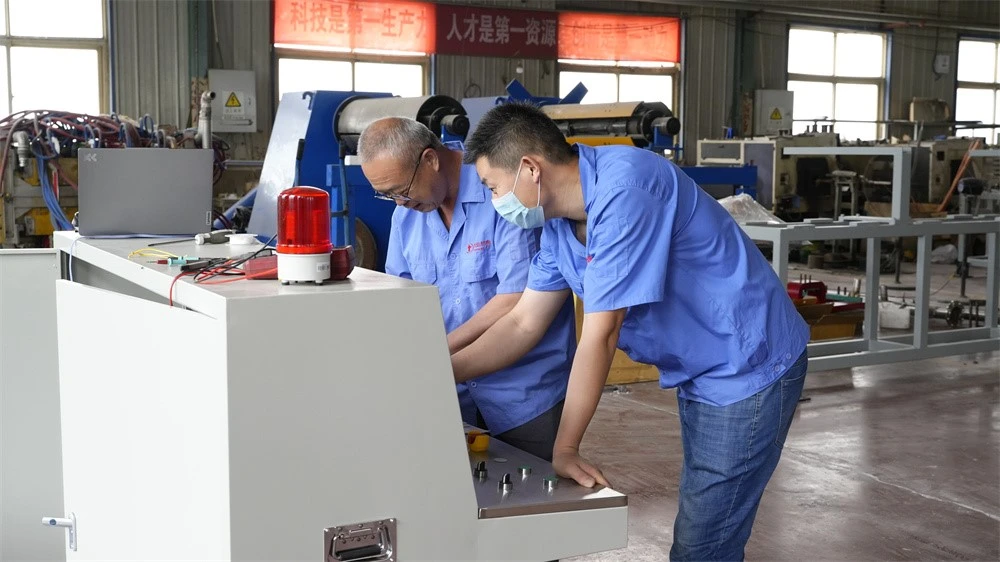

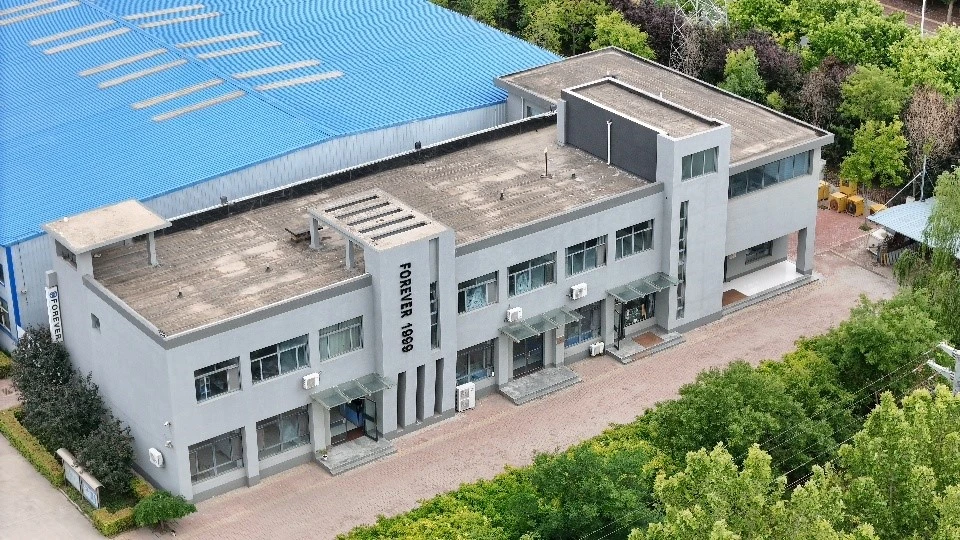

Company environment
