Power Supply System Configuration
Slab Secondary Reheating Equipment adopts dual rectifier 12-pulse or 24-pulse power supply design, with rated power ranging from 1000KW to 12000KW and operating frequency between 500Hz and 1200Hz. The power supply supports two operation modes: single power source independent operation or multi-power-source parallel connection to satisfy production requirements of different output capacities.
Production Capacity & Applicable Slab Specifications
Production Efficiency
The hourly output of the equipment is from 40 tons to 300 tons, and the production capacity can be adjusted flexibly according to slab dimensions and processing technology standards.
Applicable Slab Size
It is applicable for slabs with thickness of 200mm–1500mm and length of 3000mm–12000mm, covering secondary reheating processing of conventional large and medium-sized slabs.
Product Details

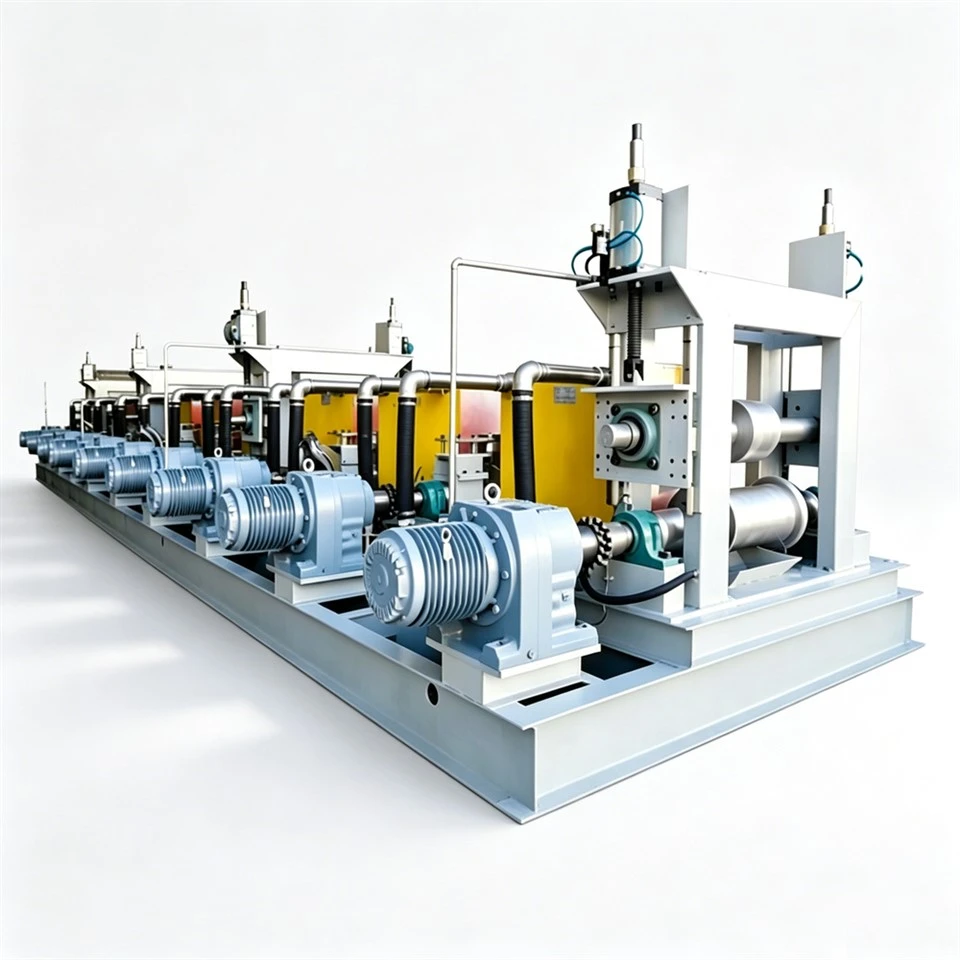

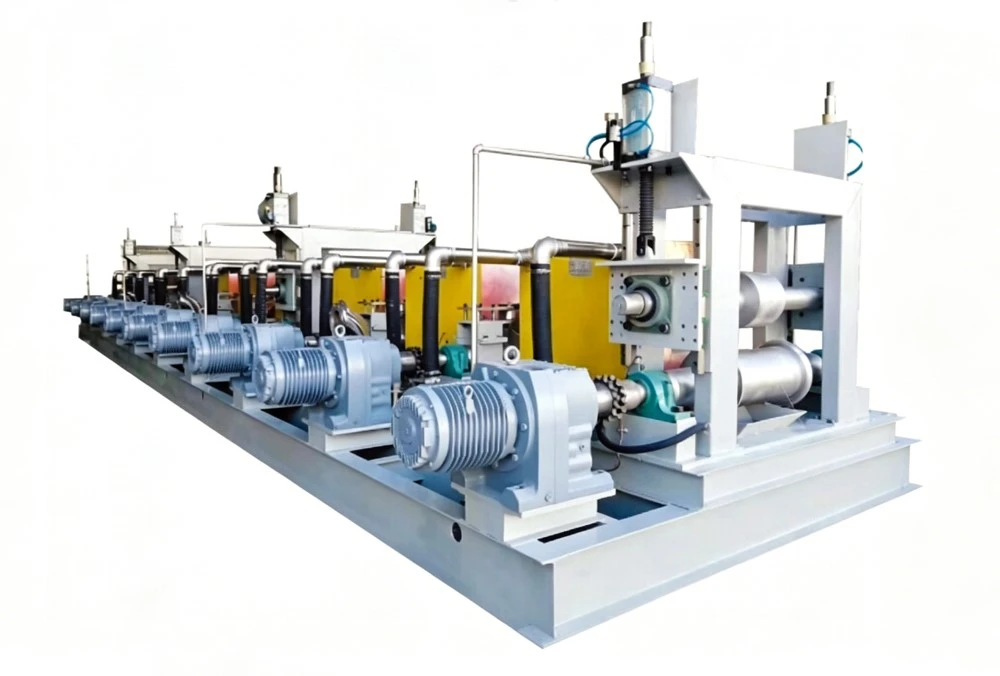

Feeding Mechanical System
1.The feeding system adopts multi-shaft driving structure. Each driving shaft is separately driven by an independent motor matched with a reducer.
2.All multi-shaft assemblies are controlled by a single frequency converter to realize synchronous rotation of all drive shafts and ensure uniform and stable slab feeding speed.
Guiding Limiting System
1.Guide rollers are made of 304 non-magnetic stainless steel to eliminate magnetic field interference on induction heating performance.
2.The guide roller is designed with proper axial elasticity. Its axial elastic deformation can accommodate allowable bending deformation of steel slabs, preventing slab jamming and surface scratching during conveying.
Automatic Temperature Control System
1.Infrared thermometers are equipped for both quenching and tempering processes, which connect with PLC to form a closed-loop automatic temperature control system.
2.The PLC collects real-time data including initial slab temperature when entering the inductor and feeding speed, then dynamically adjusts output power automatically to keep constant slab outlet temperature before discharging.
Industrial PC Intelligent Control System
1.Real-time data display: Operation parameters and running status are displayed on screen for on-site staff to monitor working conditions.
2.Data management: The system supports memory, storage and printing of slab processing parameters for production data filing and traceability.
3.Fault linkage protection: An alarm will be triggered automatically once equipment failure occurs. Under abnormal conditions, power output drops automatically while constant furnace temperature is maintained to reduce finished product rejection rate.
Manufacturer Information
As an original equipment manufacturer, Hebei Yuantuo Electromechanical independently produces complete sets of Slab Secondary Reheating Equipment. Customization is available for electric control cabinet, induction power supply and mechanical feeding components. Non-standard modification can be implemented to match existing production lines, alongside full after-sales services including on-site installation, commissioning and maintenance.
FAQ
Q1: What slab specifications does this reheating machine process?
A: It processes slabs with thickness between 200mm and 1500mm, length from 3000mm to 12000mm. Its hourly output ranges from 40 tons to 300 tons, suitable for secondary reheating of large & medium slabs for hot rolling and forging production lines.
Q2: How stable is the equipment temperature control system?
A: The unit adopts infrared thermometers cooperating with PLC closed-loop temperature control system. The industrial PC collects real-time slab temperature and feeding speed to adjust power automatically, keeping consistent discharging temperature and lowering rejection rate.
Q3: Are you a manufacturer or trading company?
A: Hebei Yuantuo Electromechanical is a direct original manufacturer. We own independent machining workshop and electric control R&D workshop. All equipment is produced in-house without middleman markup, and customers are welcome to visit our factory for inspection.
Q4: What after-sales & export support can you provide?
A: We supply export-standard packaging, English operation manuals, on-site installation & commissioning, overseas technician guidance and long-term warranty service. We also provide relevant certification documents for customs clearance.
