Power Supply System Configuration
Steel Billet Online Reheating Production Line is equipped with dual-rectifier 12-pulse power supply units. The single power unit ranges from 3000KW to 5000KW with an operating frequency of 500Hz-1500Hz. Multiple power sources can be operated in parallel to adjust the total output flexibly according to actual reheating load, meeting the demand of continuous heating in mass production.
Production Capacity Parameters
The hourly output of the production line is between 40 tons and 300 tons. The running speed can be adjusted based on billet dimensions and reheating processes to satisfy bulk production requirements for steel plants of different scales.
Applicable Billet Specification
It is designed for thick steel billets with thickness from 500mm to 1500mm and length ranging from 9000mm to 15000mm, dedicated to online temperature compensation of large-size heavy billets.
Feeding & Transmission System
1.Each conveying roller is driven by an independent motor matched with a reducer, adopting a multi-shaft driving layout.
2.The transmission structure can connect to customers' existing production line to realize synchronous operation of all shafts and guarantee stable billet feeding without jamming.
Guiding System
1.Guide rollers are made of non-magnetic 304 stainless steel to avoid abnormal heat generation caused by magnetic field interference.
2.The axially elastic structure of guide rollers accommodates permissible bending deformation of steel billets within tolerance, preventing scratching and blocking during feeding.
Industrial Control System
1.The control system realizes data synchronization with customers' on-site original operating system to simplify operation steps.
2.The human-machine interface displays real-time operating parameters and equipment status including power, temperature and feeding speed.
3.The system supports billet parameter recording, data storage, report printing and automatic fault alarm logging.
4.It adjusts output power automatically to maintain constant billet reheating temperature.
Application Description

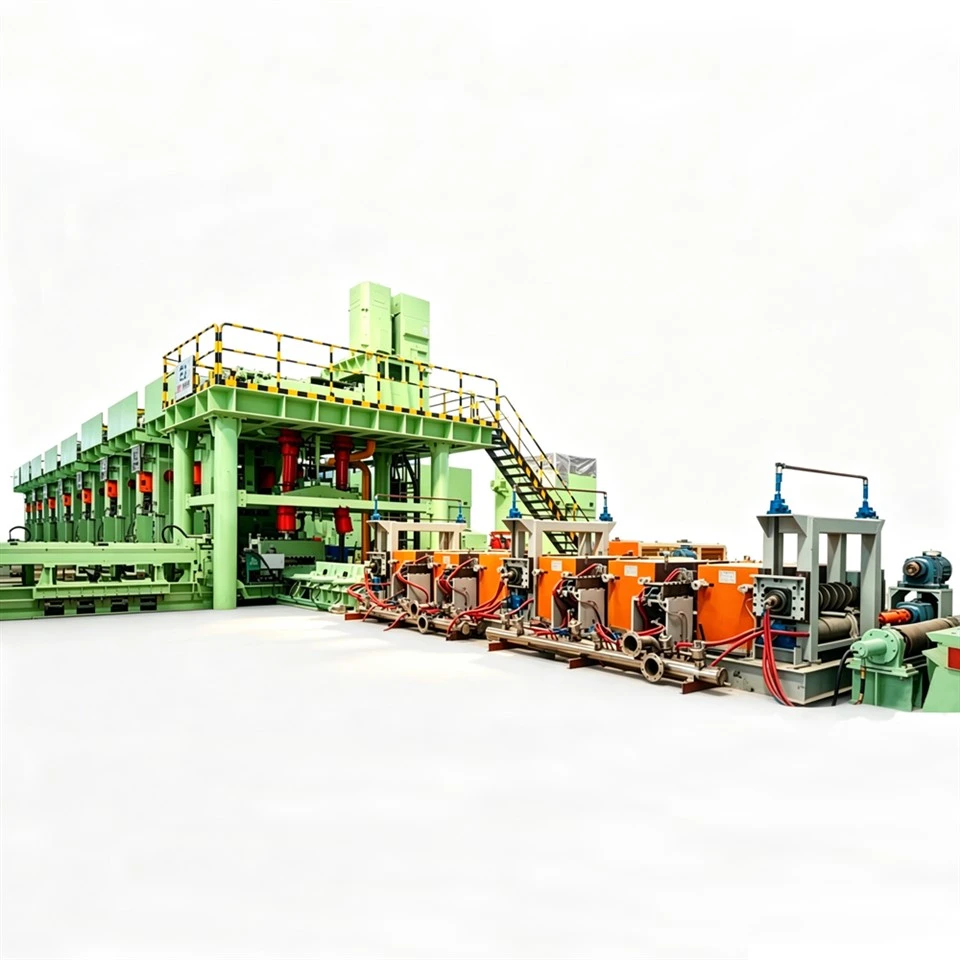

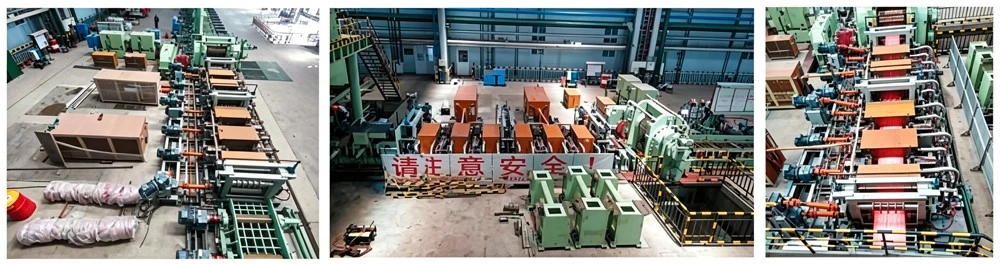

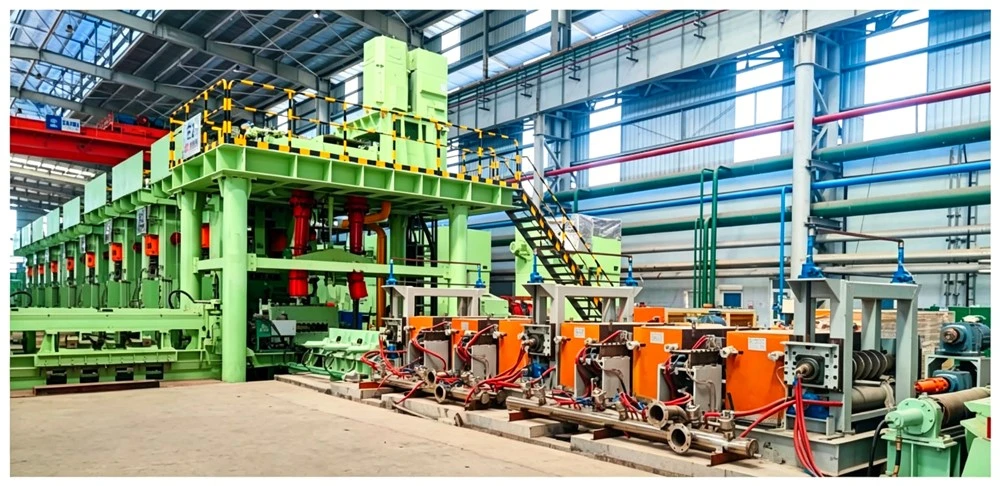

Steel Billet Online Reheating Production Line features modular design for power supply, feeding, guiding and control modules. Customers can select modules as needed for new rolling line construction or upgrading of outdated existing production lines in steel mills.
Why Choose Us
Factory Direct Supply
As the manufacturer of Steel Billet Online Reheating Production Line, we provide factory-direct sales with no middlemen, controlling cost and delivery lead time.
Customized Design
We tailor the Steel Billet Online Reheating Production Line on the basis of customers' billet size, output and existing production lines, suitable for new project construction and old line retrofit.
Proven Reliable Technology
Core structures including 12-pulse power, elastic guide rollers and synchronous feeding have been verified by field application for stable long-time operation.
Full After-sales Support
We offer on-site installation, commissioning, operator training and long-term spare parts supply, plus remote online troubleshooting.
FAQ
Q1: Are you a trading company or manufacturing factory?
A1: We are an original manufacturer specializing in induction heating equipment, independently producing the Steel Billet Online Reheating Production Line.
Q2: Can you customize the Steel Billet Online Reheating Production Line per our workshop conditions?
A2: Yes. We adjust power, feeding layout and control configuration according to your billet size, output and existing production lines.
Q3: Do you provide on-site installation and commissioning service?
A3: We arrange professional engineers for field installation, equipment debugging and staff operation training.
Q4: How about your after-sales spare parts supply?
A4: We guarantee long-term supply of original spare parts and remote online fault troubleshooting.
Q5: How many years has your factory engaged in induction heating equipment?
A5: We have rich field experience in induction reheating industry, with products verified by lots of steel mill projects.
