Product Application Scope

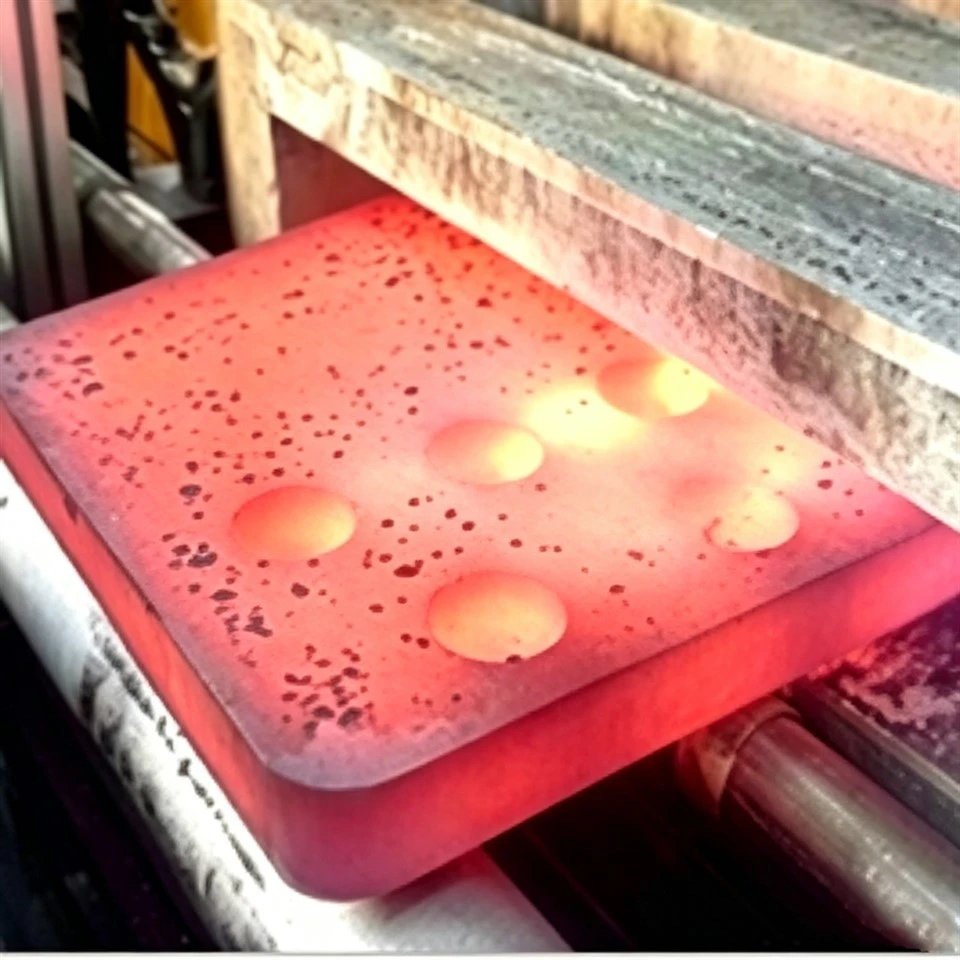

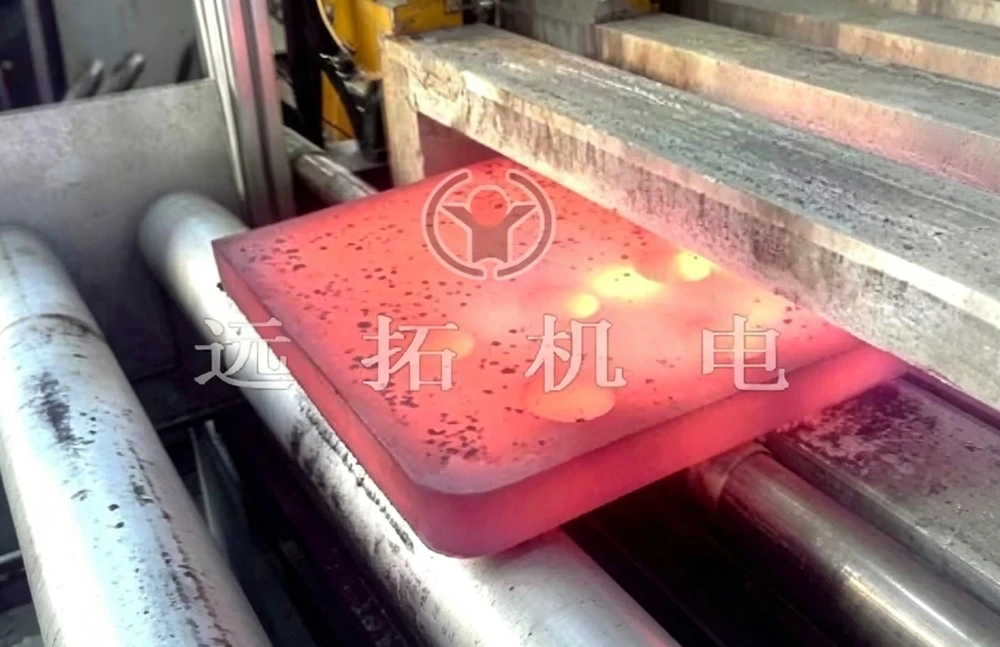

Hot Rolled Plate Heating Equipment performs intermediate-frequency preheating before steel plate hot rolling. It is applicable to raw materials including steel plates, slab blanks, cutter edge plates and engineering blade plates, serving as the pre-heating procedure prior to hot rolling forming of steel products.
Main Technical Specifications
Intermediate-frequency Power Supply System
Equipped with intelligent intermediate-frequency power supply rated at 100~4000KW and 200~8000HZ. It realizes fast and uniform heating of steel via variable-frequency intermediate-frequency induction heating. Power specifications can be customized according to customers' production capacity.

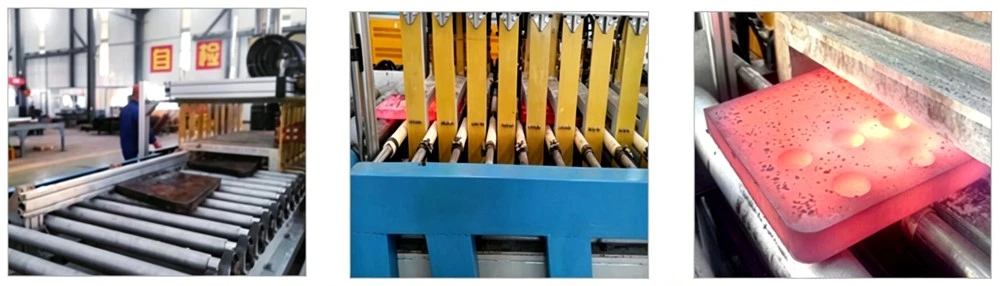

Automatic Feeding System
The feeding unit consists of roller tables and powered double pinch rolls. Each transport shaft is driven by an independent motor and reducer with a separate frequency converter. The system allows adjustable speed difference output and segmented speed control based on plate thickness and rolling processes.
Roller Electrical Isolation Structure
Custom-designed electrical isolation structure for rollers eliminates sparking and surface abrasion between workpieces and conveying rollers during heating. It reduces rejection rate of finished workpieces and extends service life of roller spare parts.

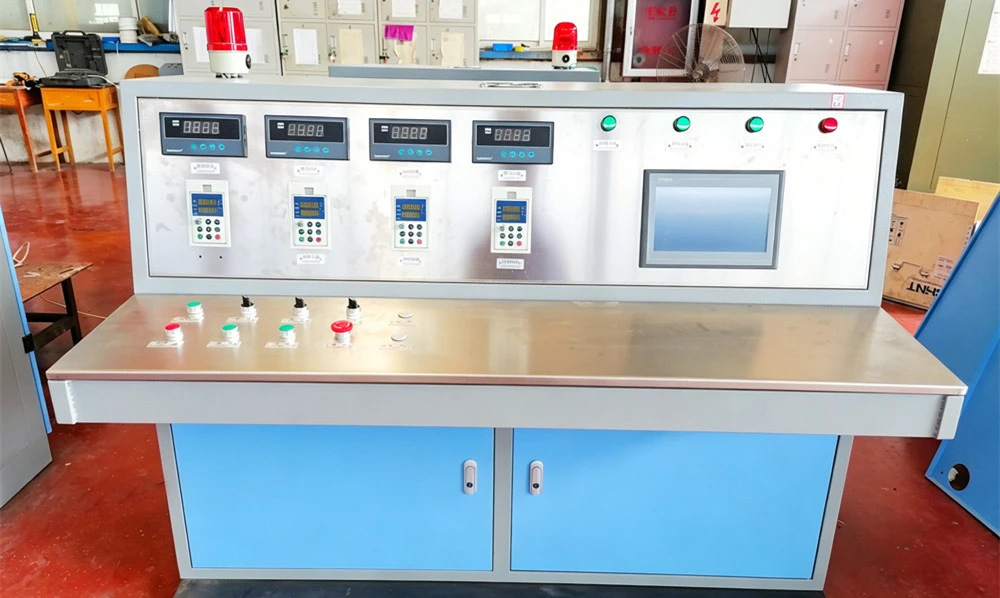

Industrial PC Control System
An industrial control console displays real-time operating parameters. It supports production data storage, record query and report printing, alongside automatic fault display and alarm functions to accelerate troubleshooting.
Formula Management System
A built-in standardized formula database automatically calls matched heating power and feeding speed after operators select steel grade and plate specifications. Manual parameter entry and lookup are eliminated to shorten model changeover time.
Energy Consumption Index
To heat steel from ambient temperature to the rolling temperature of 1150℃, power consumption stands at 330~360 kWh per ton of steel. Actual power consumption fluctuates with steel material and ambient temperature.

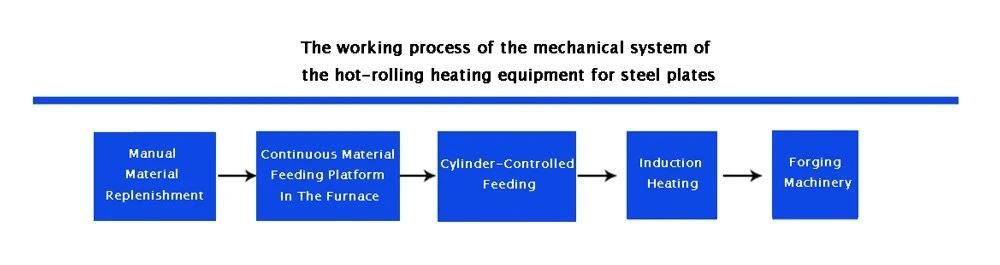

Work process

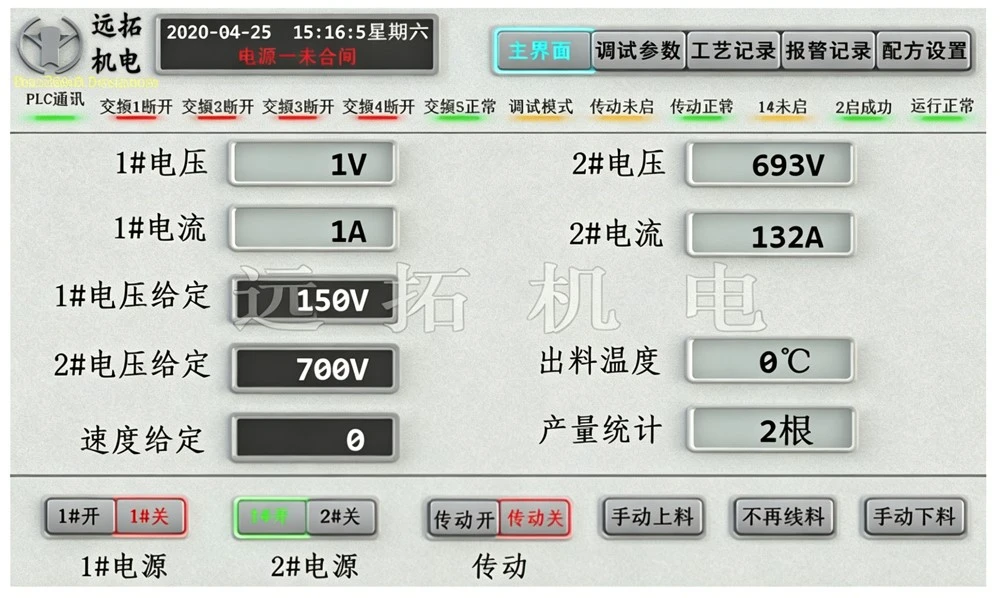

PLC intelligent control system
Competitive advantage
Production Cost Reduction
Heated steel gains improved ductility and lower deformation resistance, cutting energy consumption during rolling to lower overall production and component wear costs.
01
Improved Mechanical Performance of Finished Steel
Uniform intermediate-frequency heating homogenizes the internal metallographic structure of steel and alloys to optimize physical and mechanical properties of rolled products.
02
Compatible with Large-scale Continuous Production
Hot Rolled Plate Heating Equipment enables non-stop mass feeding and heating to raise rolling efficiency and processing speed. It can connect with fully automatic hot rolling lines to realize continuous and automated production.
03
Easy Operation
Centralized automatic control and one-click formula selection reduce operator training period and labor cost.
04
High Finished Product Yield
Even heating avoids overheating or insufficient temperature of raw plates, effectively preventing cracking during rolling and stabilizing product qualification rate.
05
After-sales Service from Hebei Yuantuo Electromechanical
- Customized design on equipment power and layout based on customers' plate dimension, production output and workshop power supply conditions.
- No-load and load running tests before factory delivery; technical drawings and electric operation manuals are delivered together with equipment.
- On-site installation, commissioning and operator training; nationwide maintenance and after-sales support available.
Cooperative customer
FAQ
Q1: Are you a manufacturer or trading company?
A: Hebei Yuantuo Electromechanical is an original equipment manufacturer with independent production workshop and R&D department. We independently produce Hot Rolled Plate Heating Equipment and complete all component processing and assembly in-house without intermediate dealers.
Q2: Can you customize Hot Rolled Plate Heating Equipment as per production conditions?
A: Yes. Our technical team calculates plate size, hourly output and factory power supply to customize equipment power, roller length and control system for different hot rolling lines.
Q3: What inspection standards do you follow before delivery?
A: Every machine undergoes no-load test and material heating test to verify temperature control, feeding and electric system. Drawings and operation manuals are delivered together with finished machines.
Q4: What after-sales services are available?
A: We provide on-site installation, commissioning and operator training. All equipment comes with fixed warranty, all-day online technical support and field maintenance for complex faults.
