Company Profile
Hebei Yuantuo Electromechanical Equipment Manufacturing Co., Ltd is a professional manufacturer focusing on Induction Heating Quenching Equipment and medium-frequency induction heating complete sets of equipment. We customize exclusive technical schemes and quotations according to customers' workpiece dimensions and production capacity requirements. A professional service team provides full-cycle support including equipment installation, commissioning and after-sales maintenance.
Electrical Performance Indicators of Equipment
- High startup stability, capable of full-load direct startup.
- Rectifier power factor ≥0.96 to improve power utilization and reduce long-term power consumption cost.
Core Configuration & Power Supply System
- Adopts air-cooled IGBT low-consumption induction heating power supply, featuring low energy consumption, environmental friendliness and stable running performance.
- Main components are imported parts with a service life over 5 years. Only the inductor needs targeted maintenance while other parts just require regular routine inspection to cut maintenance expenditure.
- Full-digital relay-free control circuit lowers failure rate and ensures stable system operation.
Production Capacity & Applicable Processing Specifications
1. Hourly output range: 0.5t ~ 3.5t.
2. Applicable workpiece outer diameter: Φ20mm ~ Φ180mm, suitable for continuous quenching processing of round bars and tubular workpieces.
Conveyor Roller Structure Design
- The axis of feed roller forms an included angle of 18°~21° with workpiece axis. Workpieces rotate automatically while moving forward at constant speed for uniform heating and consistent quenching effect.
- Furnace rollers are made of non-magnetic 304 stainless steel with water cooling structure to prevent high-temperature deformation.

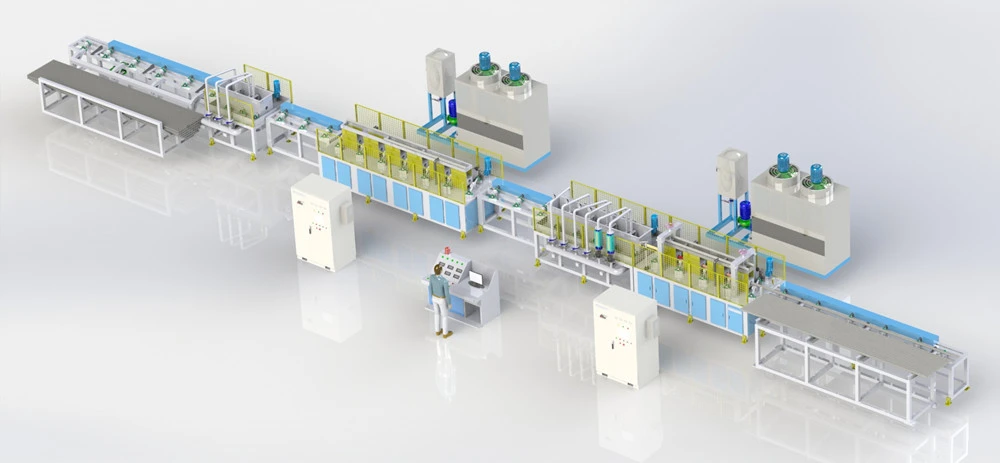

- Rollers are divided into three independently controlled groups: feeding group, inductor group and discharging group. It ensures non-stop feeding without gaps between workpieces to realize continuous assembly line production.
Closed-loop Temperature Control System

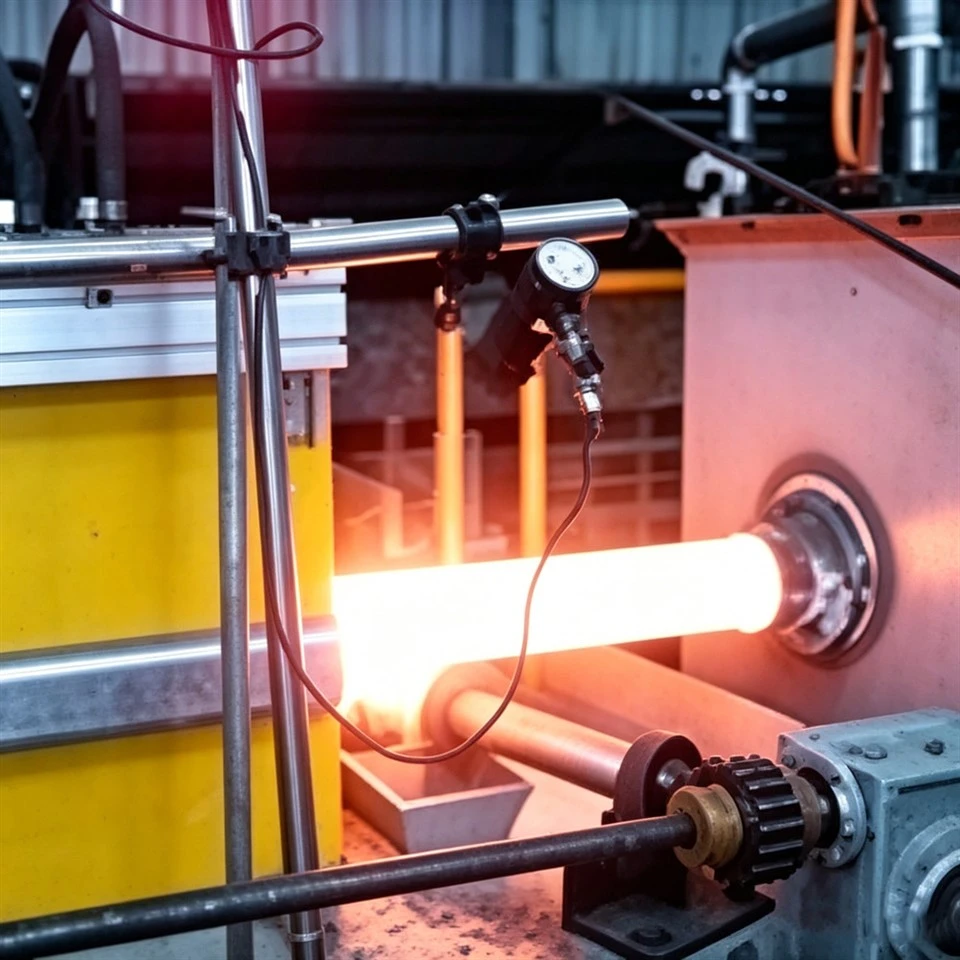

- American Raytek infrared pyrometers are equipped for heating and quenching processes to build full-process closed-loop temperature control system and realize precise real-time temperature regulation.
- Reserved dedicated temperature interface for expanding external temperature control modules.
Electronic Control & Operation Settings
Industrial PC Management System
The equipped industrial control computer displays real-time operating parameters, stores workpiece processing data with functions of parameter memory, data archiving and report printing. It also supports automatic fault identification and early warning for convenient troubleshooting.
Operation Switch Mode
Equipped with remote control switch, supporting both automatic and manual operation modes for production commissioning and formal mass production respectively.
Simplified Operation Logic
Processing formulas for different sized workpieces are preset before factory delivery. Operators select matching formula to start production with minimal manual debugging.
Multi-protection Functions
Built-in comprehensive protection modules including overcurrent, overvoltage, undervoltage, phase loss, water pressure and cooling water temperature protection. The machine will stop automatically under abnormal conditions to avoid damages on power source and workpieces.
Core Product Advantages
- Energy saving: IGBT air-cooled power supply plus high power factor design cuts power loss and production electricity cost.
- Superior processing quality: Inclined rotary roller plus closed-loop infrared temperature control guarantees uniform heating and quenching to stabilize finished product qualification rate.
- Flexible production: Separately controlled roller groups realize uninterrupted feeding. Variable hourly output meets demands from small-batch to large-batch continuous production.
- Low maintenance cost: Imported core parts extend equipment service life with few spare part replacements and only regular daily inspection needed.
- Low operation threshold: Preloaded processing formulas enable one-click startup to reduce technical requirements for operators.
Applicable Industries & Processed Products

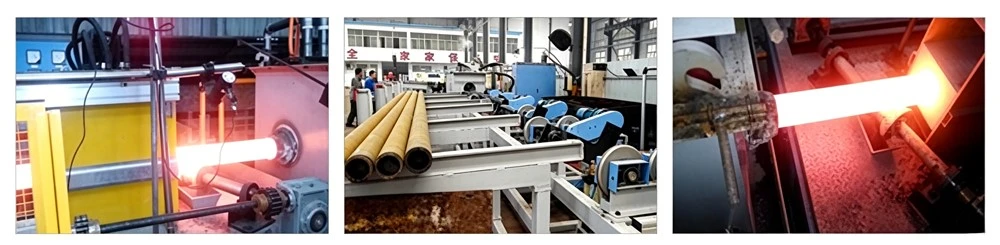

- Pipe processing industry: Integral or partial quenching for seamless steel pipes, hydraulic oil pipes and precision round tubes.

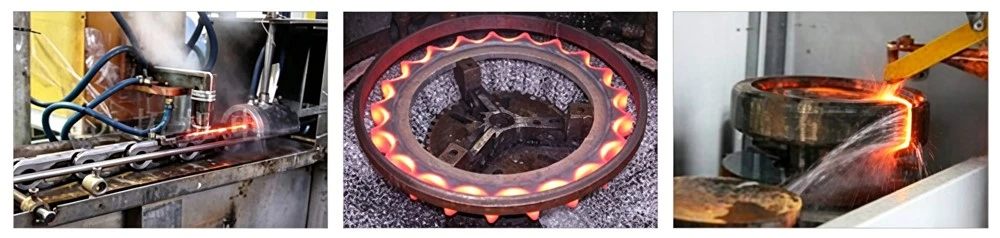

- Machinery parts industry: Continuous quenching for cylindrical components such as pins, round steel bars and transmission shafts.
- Hardware manufacturing industry: Heat treatment quenching for standard fasteners and cylindrical hardware blanks.
Full-set Supporting Services
Pre-sale
Collect workpiece technical parameters and provide free customized equipment scheme and quotation.
In-sale
Complete factory pre-commissioning, on-site installation guidance and operator vocational training.
After-sale
Remote technical troubleshooting, spare parts supply and periodic equipment return visit & inspection.

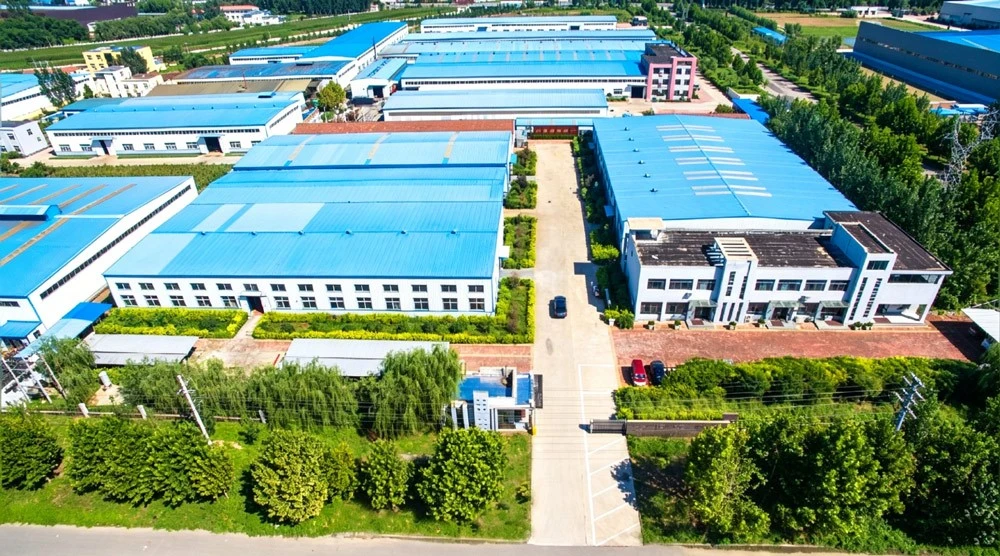

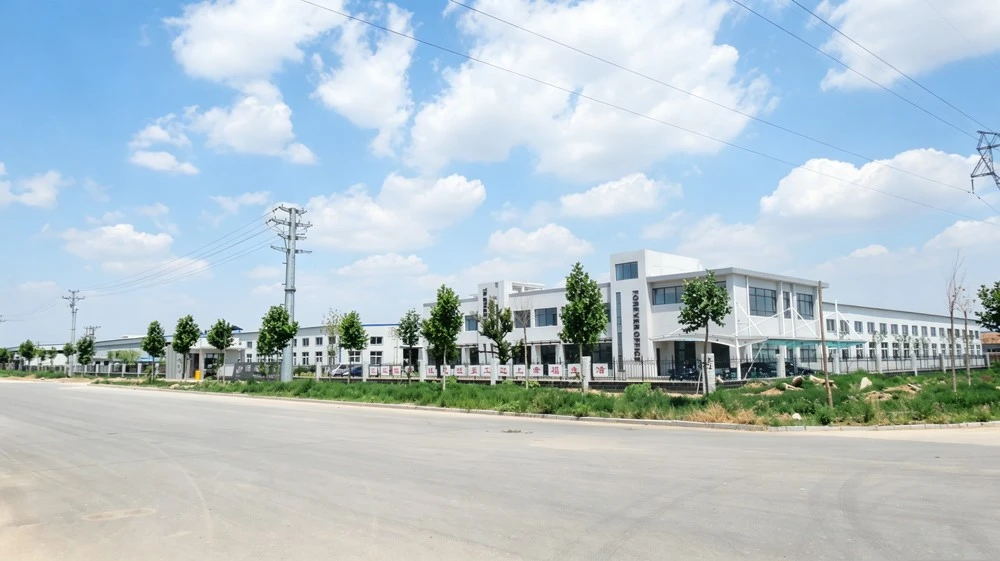

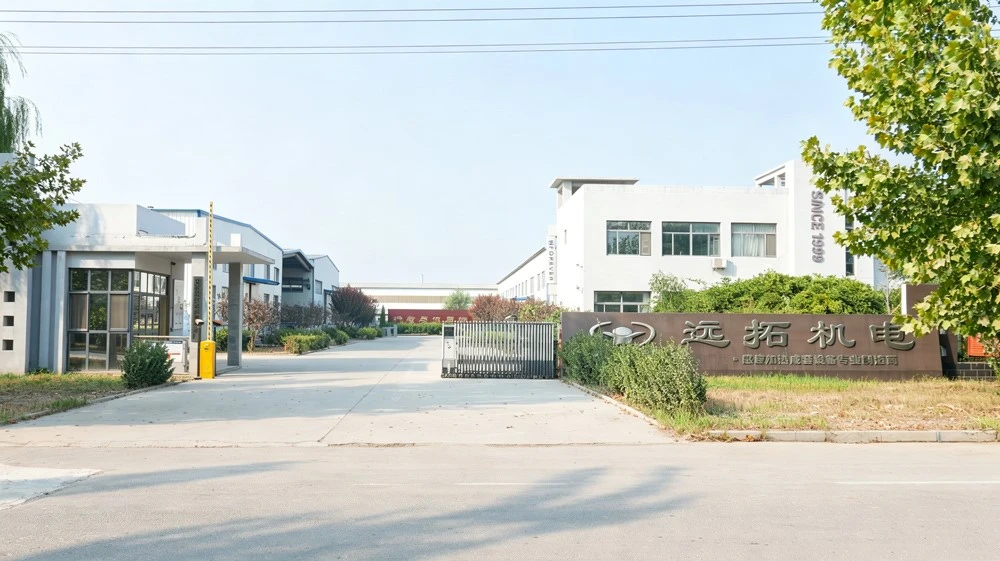

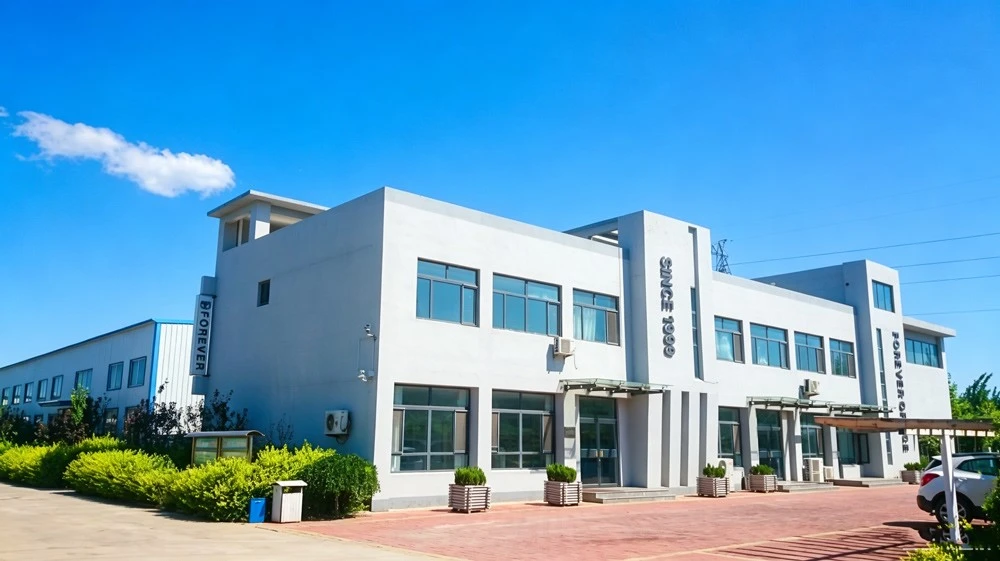

Company real scene
