Basic Product Information
- Manufacturer: Hebei Yuantuo Electromechanical

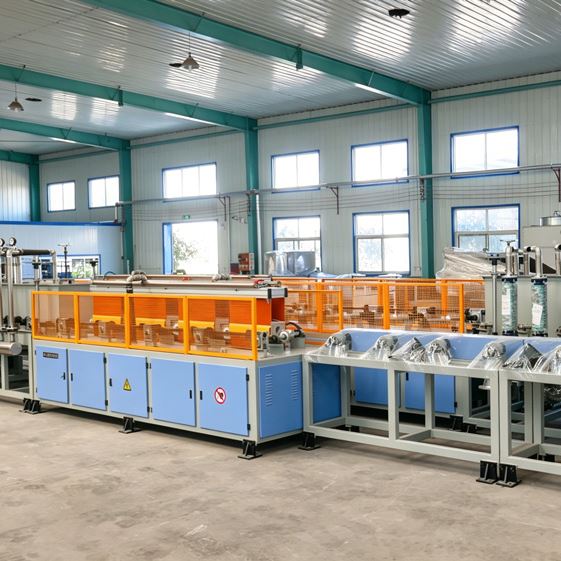

- Product Name: Medium-frequency Induction Continuous Quenching and Tempering Heat Treatment Equipment
- Customization: Non-standard customization is available. Overall configuration and process parameters can be adjusted according to workpiece specifications and raw material grades.
- Application: Complete integrated quenching and high-temperature tempering for metal bars to support mass heat treatment of industrial steel components. Quenching and Tempering Heat Treatment Equipment meets bulk tempering production requirements for various types of steel materials.
Core Technical Parameters
Table 1 Power & Production Capacity Parameters
|
Item |
Specification |
|
Power for quenching medium-frequency power supply |
160~1000KW, frequency: 0.5~4KHz |
|
Power for tempering medium-frequency power supply |
100~600KW, frequency: 0.5~2.5KHz |
|
Hourly production capacity |
0.5~3.5t/h |
|
Power consumption per ton finished product |
420~480 kWh (whole process of through heating quenching + high-temperature tempering) |
Table 2 Workpiece Processing Range
|
Item |
Processing Scope |
|
Workpiece diameter |
Φ10mm~Φ120mm (main regular size: Φ20mm~Φ120mm) |
|
Workpiece length |
2m and above |
|
Applicable steel grades |
35#,45# carbon steel, 304/316 stainless steel, 20Cr,40Cr,50Cr,3Cr2W8V,20CrMnTi and other alloy steels |
|
Typical processed products |
Carbon steel bars, low-alloy structural steel bars, wind power fasteners, transmission lead screws, hydraulic cylinder piston rods |

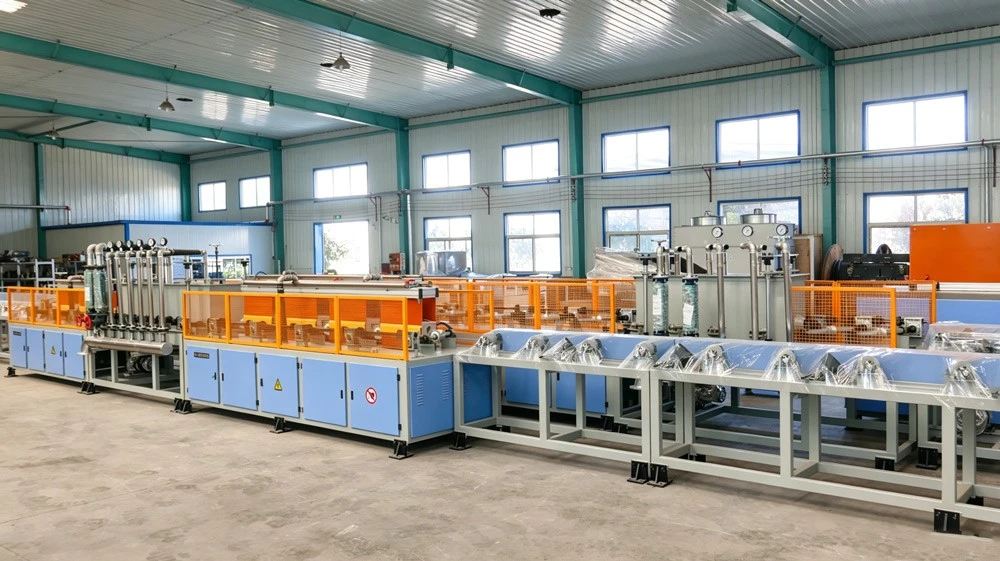

Complete Equipment Composition

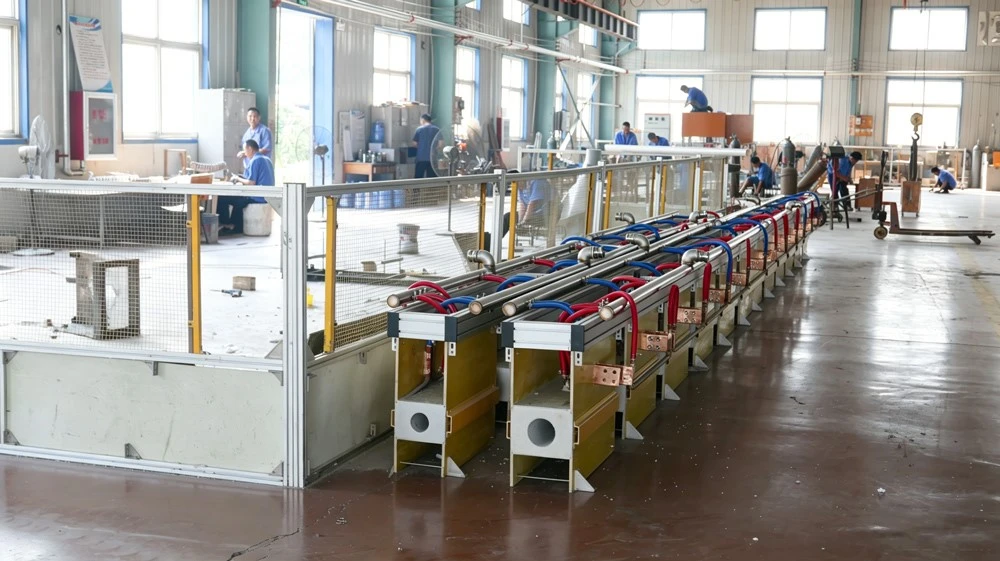

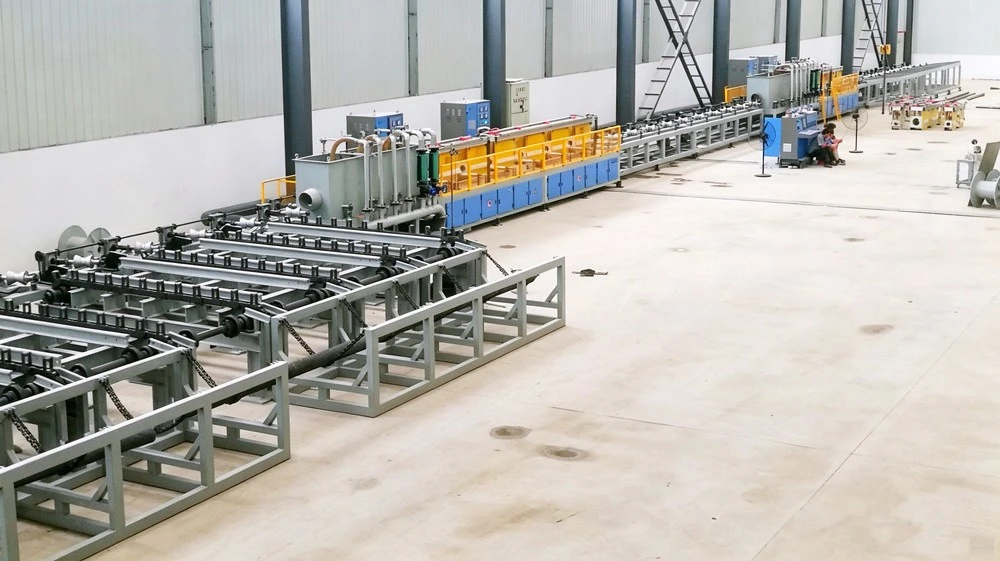

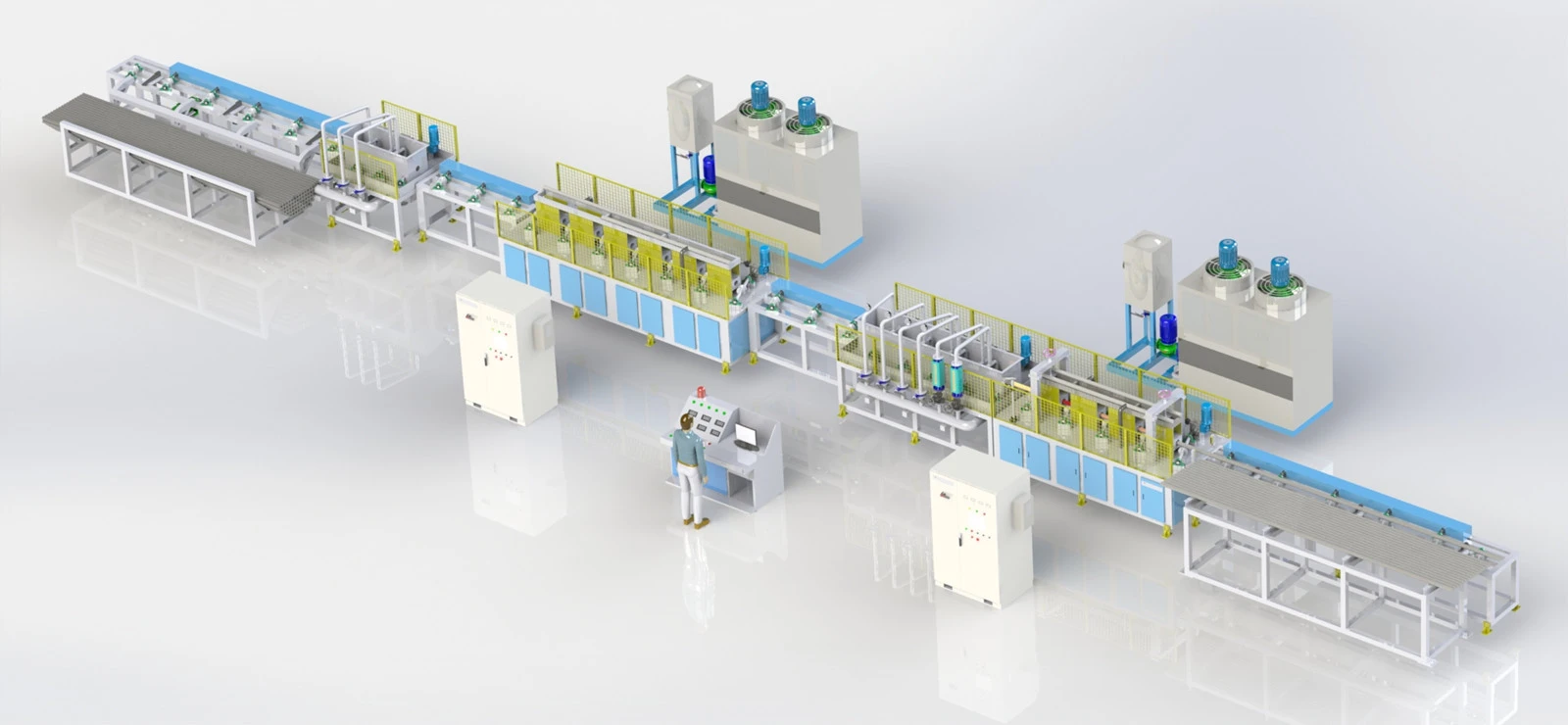

The full tempering production line consists of eight modular units for continuous inline heating:
- Intelligent medium-frequency induction quenching power supply and induction furnace body
- Intelligent medium-frequency induction tempering power supply and induction furnace body
- Closed-circuit circulating water cooling system
- Raw material storage rack and automatic mechanical feeding device
- Real-time infrared temperature measuring assembly
- Quenching spray cooling system
- Finished product discharging conveyor system
- PLC + industrial computer master control system
Control hardware: Industrial computers from Advantech Taiwan as core control parts
Production Working Process
- Feeding: Bundled steel bars are hoisted and placed on the raw material rack by travelling crane.
- Automatic feeding: The mechanical feeder conveys single workpieces to heating station following preset production rhythm.

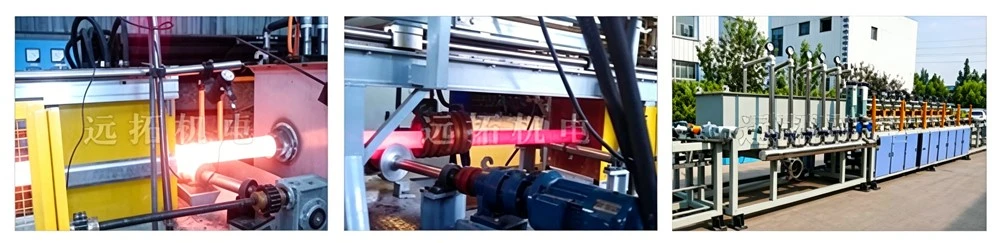

- Continuous quenching: Workpieces rotate and move forward on inclined rollers, heated to set quenching temperature via medium-frequency through heating, then instant spray cooling is implemented.
- Continuous tempering: Quenched workpieces directly enter tempering induction furnace for medium-frequency heating and high-temperature tempering.
- Automatic full-process control: All conveying, heating, cooling and temperature control operations after feeding run automatically via PLC system.
- Data recording: The industrial computer automatically saves, displays, records and prints operational data including equipment running status, temperature and electrical parameters.
Core Equipment Advantages
Closed-loop temperature control with automatic power adjustment
Equipped with PLC and infrared thermometry system. The system automatically adjusts power output or line travelling speed against preset quenching & tempering temperature when input voltage fluctuates, stabilizing heat treatment processes and improving finished product qualification rate. Real-time reports of temperature curves, voltage and current data can be stored for filing.
Real-time monitoring of quenching cooling conditions
The quenching spray unit is fitted with cooling water flow and water temperature monitoring modules. Automatic cooling parameter records are generated for process debugging, production traceability and quality inspection.
Uniform heating & cooling with rotating workpieces
Inclined installation of feeding and furnace rollers enables constant rotation of moving workpieces, ensuring consistent circumferential heating and spray cooling to avoid uneven hardness after heat treatment.
Energy-saving structural design
304 stainless steel is adopted for connecting-section rollers to reduce heat loss and improve power conversion efficiency, cutting unit power cost for users. Quenching and Tempering Heat Treatment Equipment effectively reduces production energy consumption via optimized structural design.
Applicable Industries
Wind power fastener manufacturing, hydraulic cylinder component processing, transmission lead screw production, construction machinery alloy bar tempering and raw material heat treatment for general alloy steel.
Customer visit
